Water level sensor is based on capacitive technology to detect presence/absence of water or similar liquids in containers of no-conductive material (ABS plastic, acrylic).
Typical applications: detecting water level in whirlpool bathtubs, SPAs, compensation tanks for pools, containers for liquid disinfectants, etc.
- To be applied externally – Not need to be in contact with the liquid/water
- Standard calibration for thickness from 4mm to 10mm (acrylic/plastic tank)
- Fixing with hot glue, silicon or epoxy resin
- It needs no further calibration
Specification
Power supply: 5 V DC
Consumption: 13mA typ
Output voltage: 5Vdc TTL
Tank thickness: 4 – 10 mm
Precision: +/- 3 mm
Operating temperature: 5 – 55 ° C
Storage temperature: –20 – 80 ° C

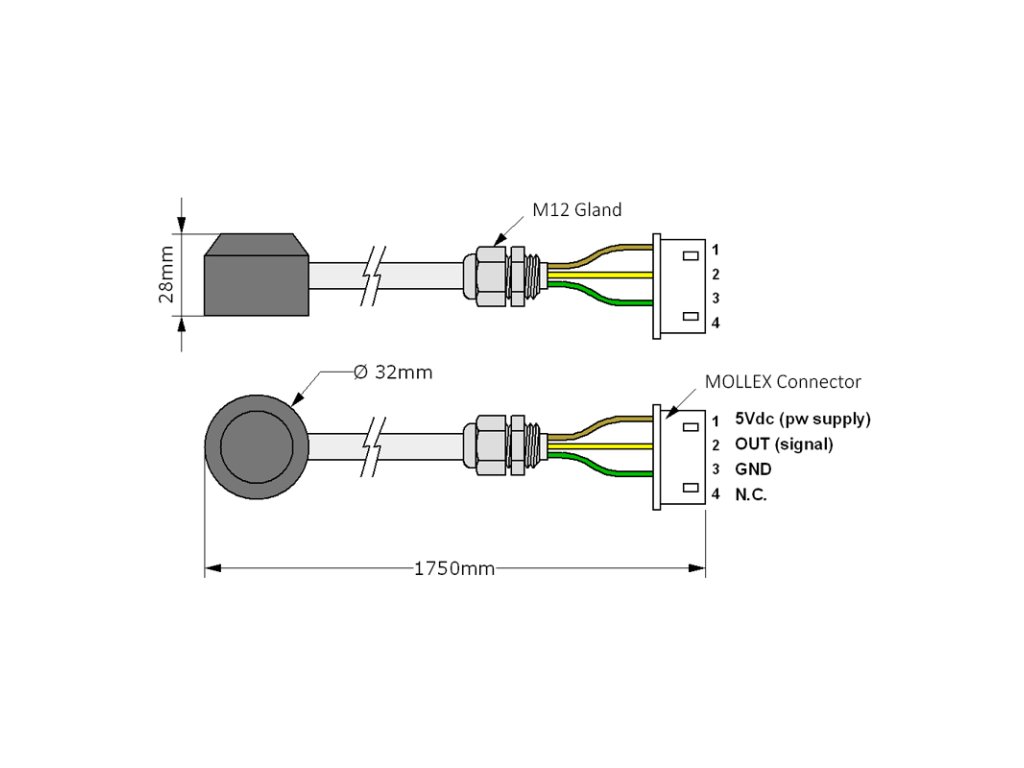

Cable length: 1750 mm
Connection: 4-pin with 3 cables (brown, yellow, green)
Additional parameters
| Category: | Level sensors |
|---|---|
| Weight: | 0.2 kg |
| Brand: | Astrel |
| Model: | Astrel Button capacitive water level switch 5V |
| Rozměry: | Délka kabelu: 1750 mm, Průměr senzoru: 32 mm, Výška senzoru: 28 mm |
| Kód produktu: | PFSELI05CCC1 |
