Astrel EASY TITANIUM HEATER - 2.0kW - PFEAT2110000

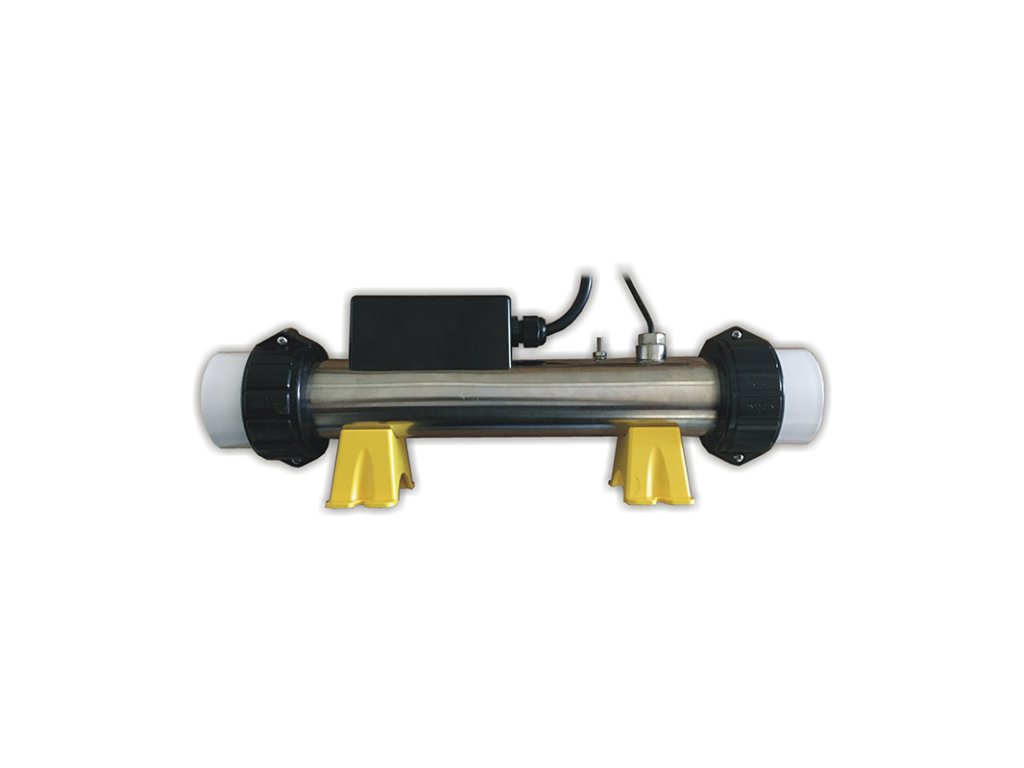

Astrel EASY TITANIUM HEATER is an electrical heater designed for Astrel spa controls. The heating element made of TITANIUM and the pipe flow are specifically designed for SPA applications. It’s a stand alone device supplied with fixing brackets for a flexible and secure positioning.
This version has a maximum power of 2.0 kW at 240 V. It is equipped with a safety probe HL and a water temperature probe.
EASY TITANIUM HEATER is manufactured in the USA in accordance with strict European CE standards for the European whirlpool components market.
Replaces older Astrel heater models:
- PFEAR3300000
- PFEAR3110000
Specication
- Connection: inner diameter 60 mm (designed to be linked up with 2 " pipes )
- Power supply: 240Vac 50Hz
- El. connection: cable H05VV-F, 3×2,5 mm², 1500 mm
- Waterproof heater connections
- Resistance: TITANIUM
- Pipe: AISI 316T
- Protection degree: IPX5

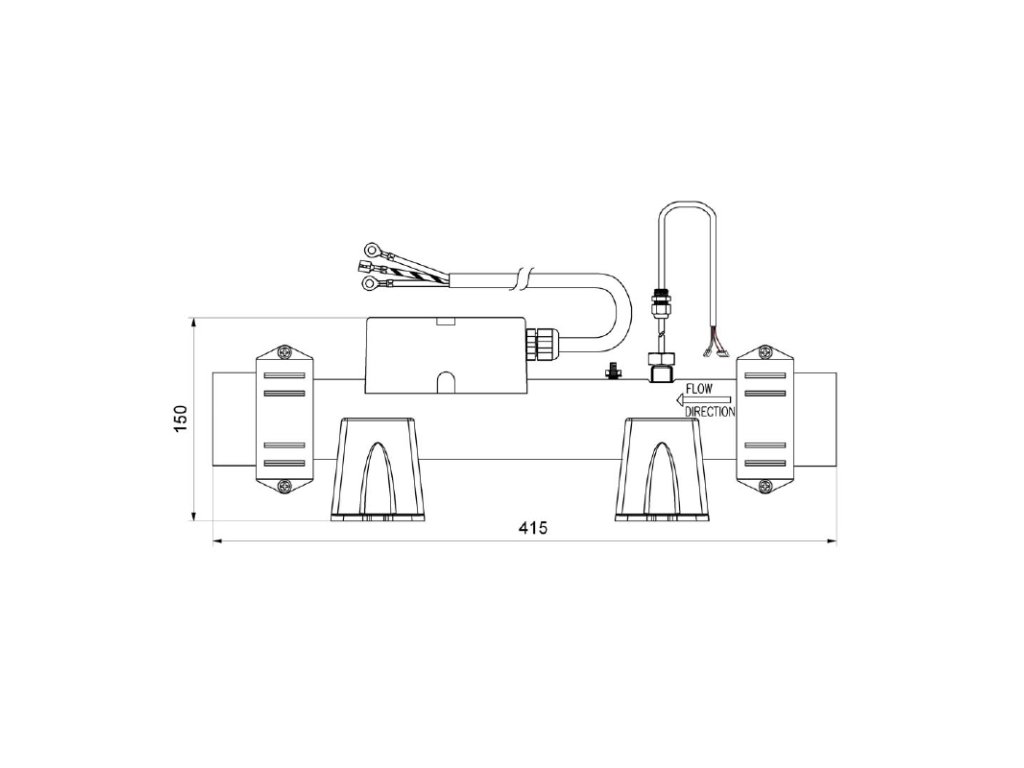

- Dimensions: 415×150 mm
- Supplied with fixing brackets for a flexible and secure positioning.
- Certification: CEI EN 60335–1, CEI EN 60335–2–60
Additional parameters
| Category: | Astrel Heating |
|---|---|
| Weight: | 2 kg |
| Brand: | Astrel |
| Heater output: | 2.0kW - 2.9kW |
| Titanium: | Yes |
| Model: | EASY TITANIUM HEATER - 2.0kW |
| Příkon: | 2.0 kW |
| Rozměry: | 415x150 mm |
| Kód produktu: | PFEAT2110000 |
| Krytí: | IPX5 |
| Napětí: | 240V, 50Hz |
