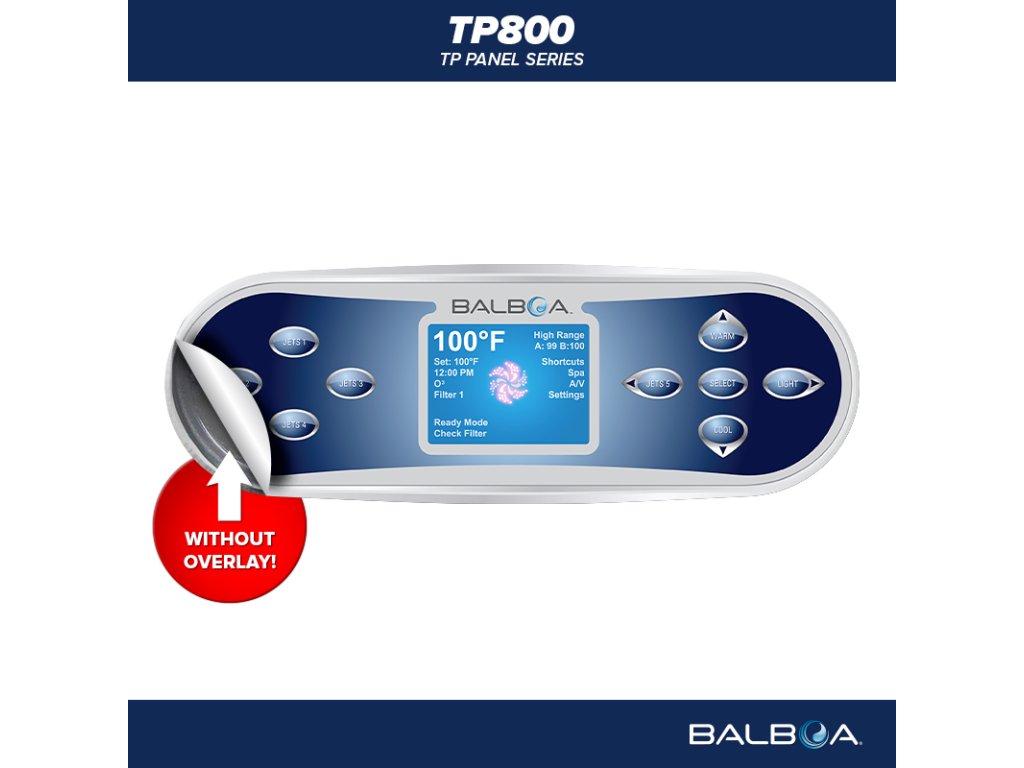

Control panels serie TP of the brand Balboa are designed to be used with the latest control unit serieBP. They are also compatible with control units Revolution, Collossus and Viper.
Connection type: Mate n Lok (4 pin)
Compatible with control units Balboa
- Viper
- Collosus
- Revolution
- BP501
- BP601
- BP2000
- BP2001
Important information
These control panels must be installed by a qualified technician or a seller who is specifically trained in this field!
The thermal cover must not touch the control panel, otherwise there is a risk of violation of IP protection and damage to the display itself. That is it can manifest itself in the damage to the pixels, and thus the unreadability of the display (bar code).
Additional parameters
| Category: | TP / SpaTouch panels |
|---|---|
| Weight: | 0.5 kg |
| Brand: | Balboa Water Group |
| Control panel: | Push button |
| Model: | Balboa TP800 |
| Je kabel součástí balení?: | Ano |

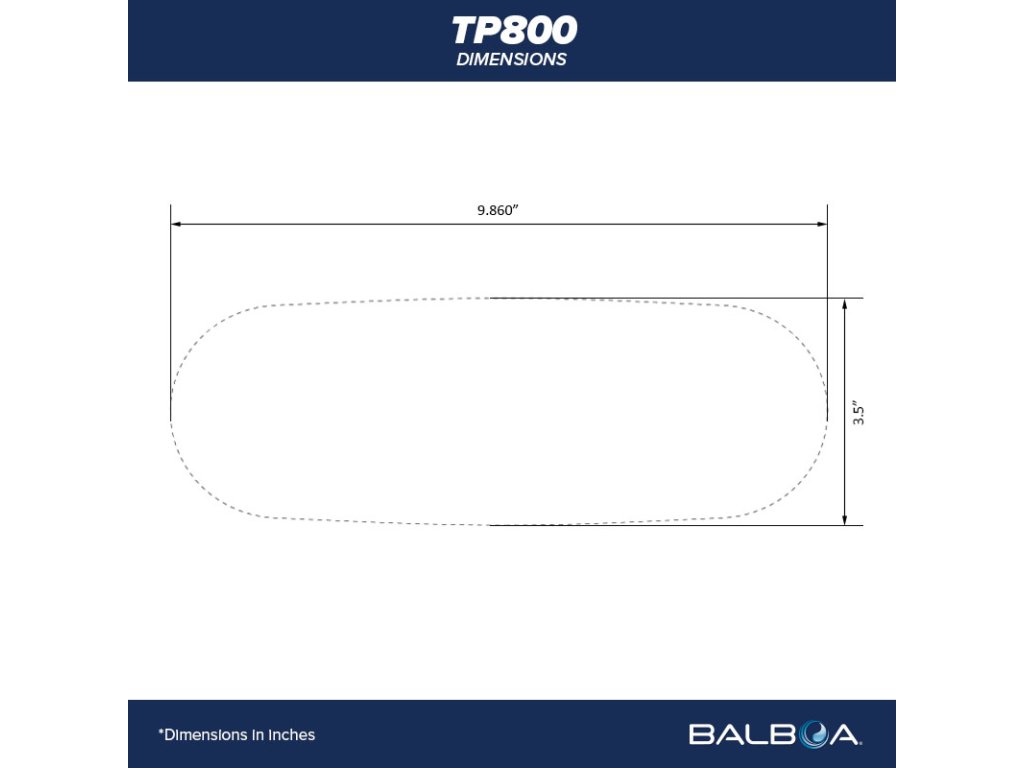

| Rozměry: | 250 x 89 mm |
| Počet tlačítek: | 9 |
| Tlačítka: | Jets 1, Jets 2, Jets 3, Jets 4, Jets 5, Warm, Cool, Select, Light |
| Kód produktu: | 57240 |
