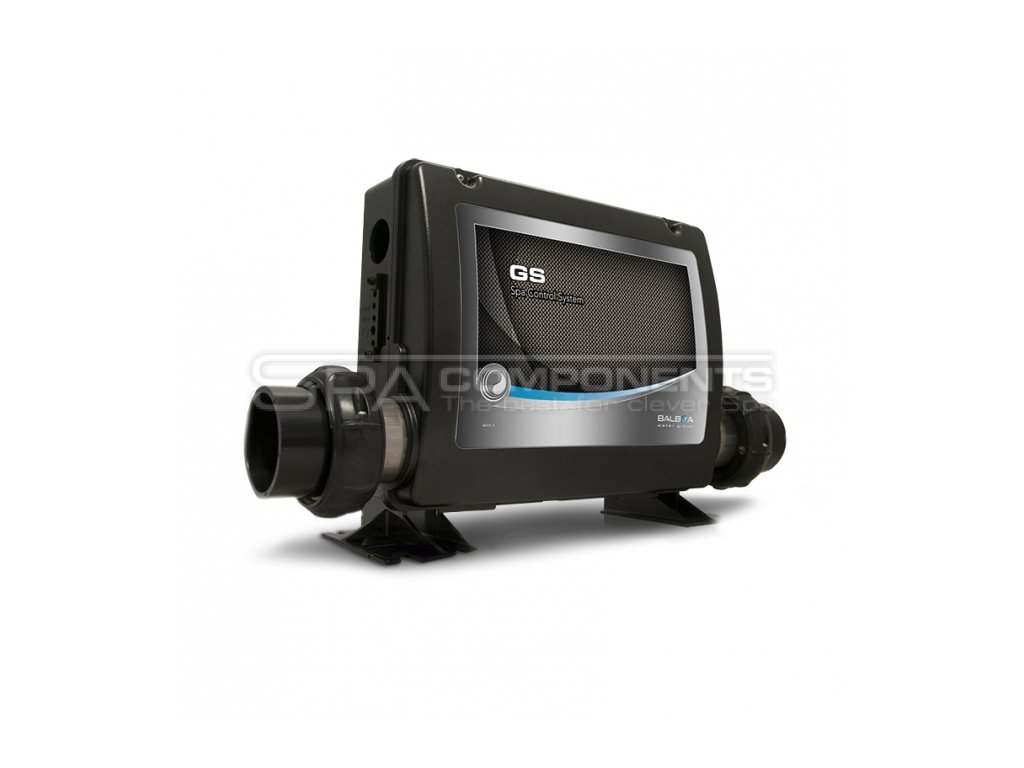

Balboa control unit GS501SZ - 2.0kW
The serie of the control systems of the serie Global Series (GS) has been designed to provide reliability, ensure easy installation and operation.
- RoHS acceptable / Environment friendly
- European safety approval
- Multilevel diagnostic function
- Better installation and service
The control systems of the company Balboa provide reliable and trouble-free operation of a whirpool, and are compatible with the most whirpools.
The control systems GS, GL and BP are supplied with the latest technology M7 which means there are no other external thermal sensors needed, the same applies to pressure and flow switches. This technology consists of two sensors M7, one at each end of the heater which offers better way of water flow and water temperature detection.
Compatible controllers
This control unit is compatible with Balboa VL series Standard such as VL600S, VL700S, VL701S and VL702S.
Specifications
- Pump 1: single-speed or two-speed massage pump + circulation pump, if required.
- Compressor: 1× (optional)
- Heating: 1 × 3kW
- Ozonizer: Yes
- Lighting: 1 × 12V
- Possibility to connect TV / AV, radio
Additional parameters
| Category: | GS/GL units |
|---|---|
| Weight: | 4.5 kg |
| Brand: | Balboa Water Group |
| Heater output: | 2.0kW - 2.9kW |
| Model: | Balboa GS501SZ |
| Rozměry: | 270 x 500 mm |
| Napětí: | 230V/ 50Hz |
