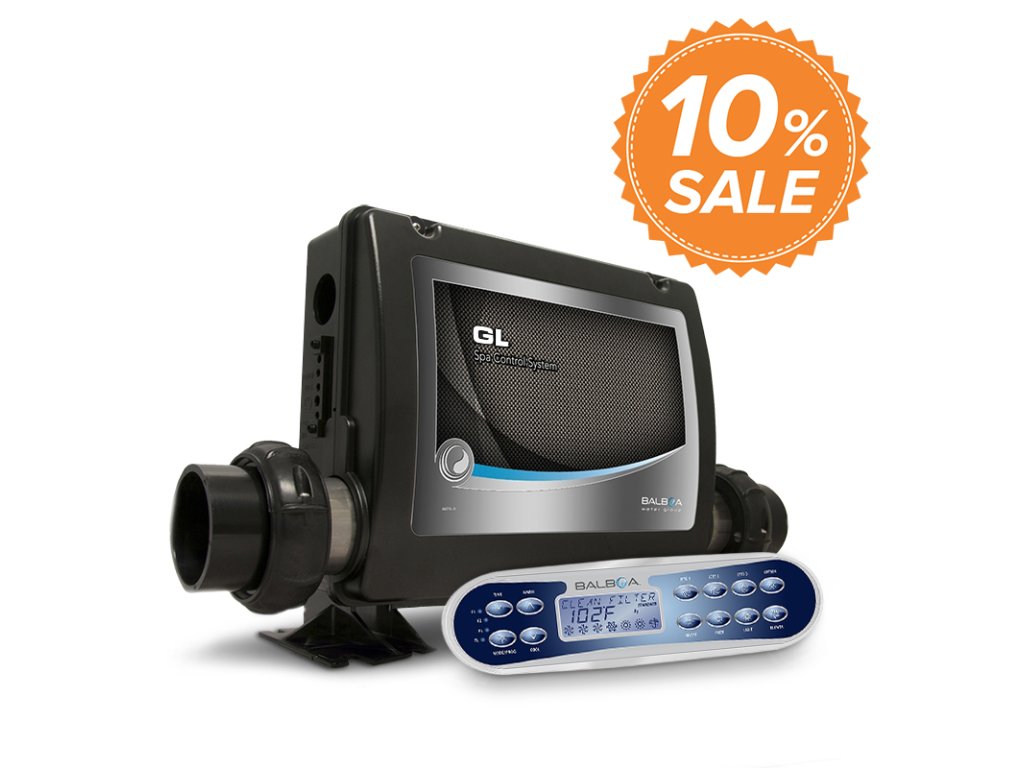

Balboa SET Control unit GL2001 Mach3 3.0kW + control panel ML900
Balboa Complete control set GL2001
- D28

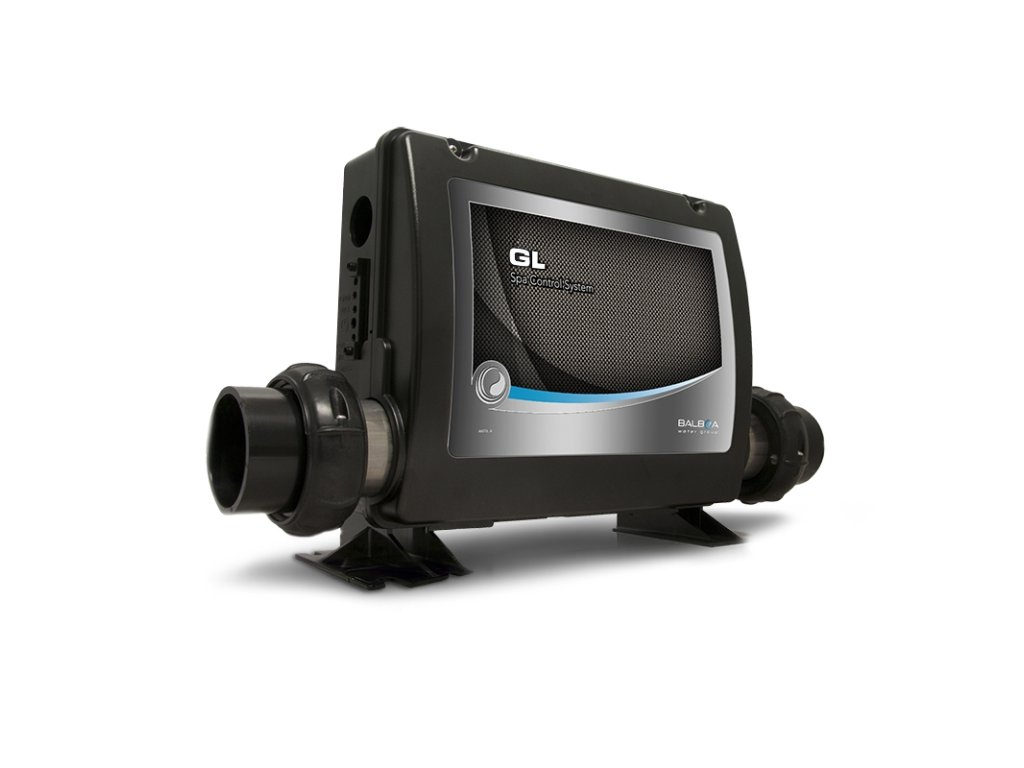

Control unit
Serie of control systems Global Elite (GL) is designed to meet reliability, easy installation and operation.
- RoHS approved / Environment friendly
- European safety approval
- Better and easy installation and service
Control systems from the company Balboa quarantee smooth and faultless operation and it can be installed to the most spas.
Control systems GS, GL and BP are delivered with the latest technology M7, meaning there is no need of external temperature sensor in your spa, or of pressure or flow switches in order to detect water flow. This technology consists of two sensors M7, one on each end of the heater which enhances flow and water temperature detection in one step.
Specification
- Pump 1: one-speed or two-speed massage pump + ciculatory pump if required
- Pump 2: one-speed or two-speed massage pump
- Pump 3 or compressor: one-speed
- Heater: 1× (3kW)
- Ozonizer: 1×
- Lighting: 1× 12V or 230V
- Connection option TV/AV, radio
Dimensions
300 × 500 mm

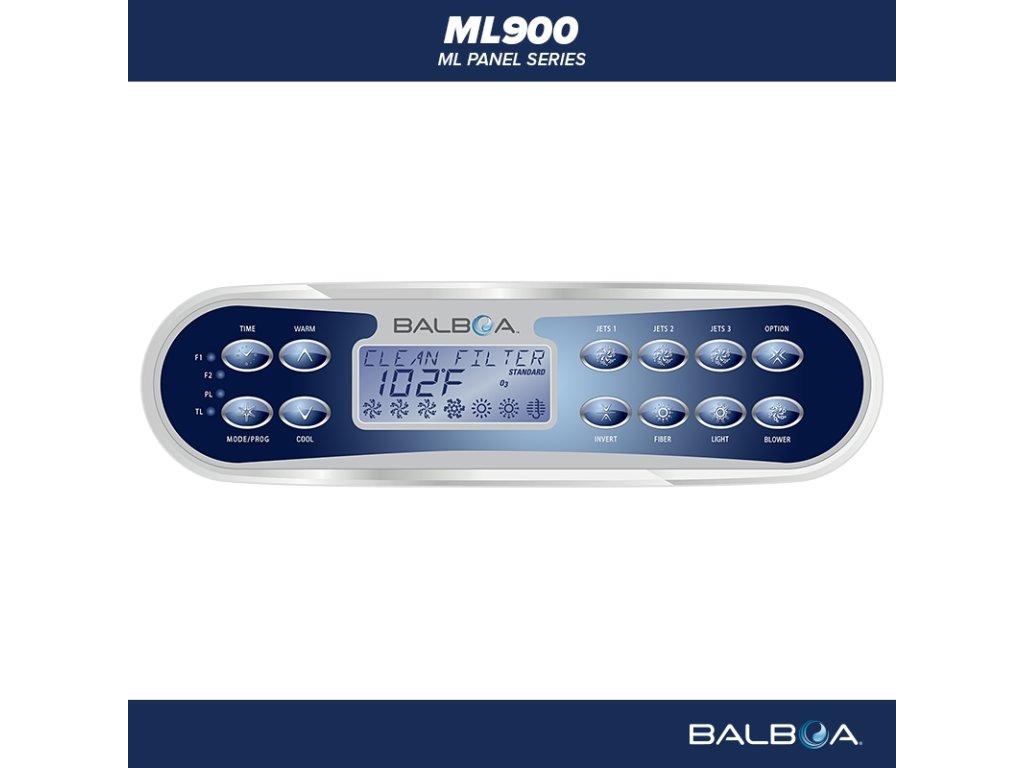

Control panel
Control panel Balboa of the serie ML.
Specification
- Connection type: Mate n Lok (8 pin)
- Buttons: Time, Mode/Prog, Warm, Cool, Jets 1, Jets 2, Jets 3, Option, Invert, Fiber, Light, Blower

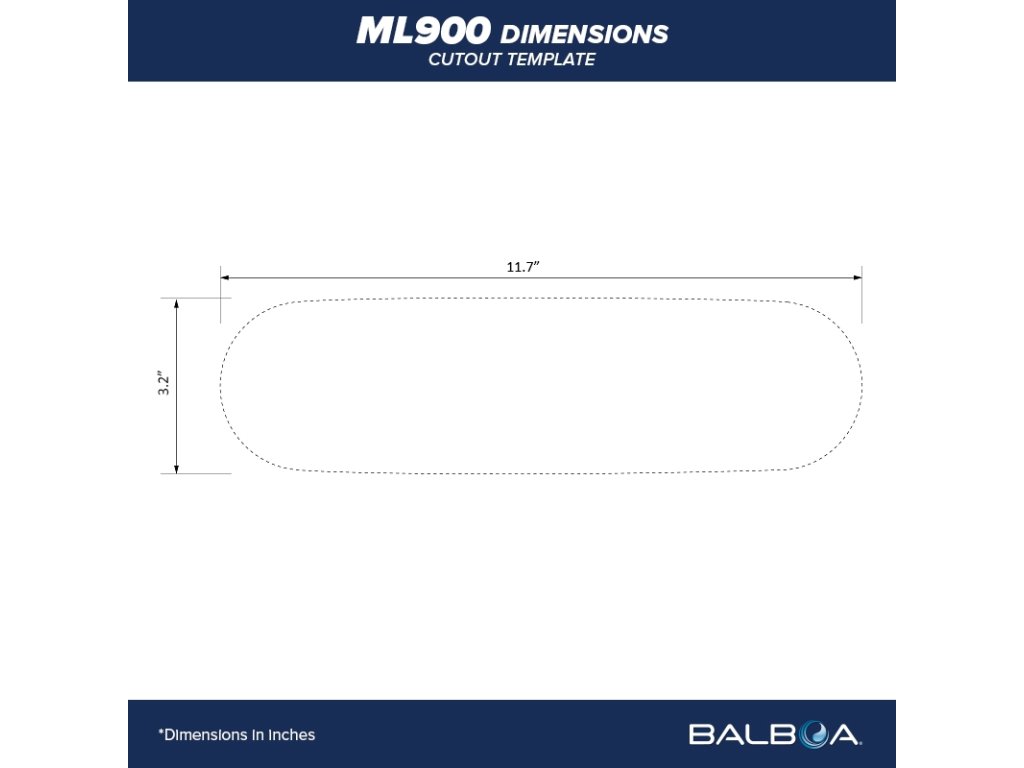

Dimensions
297 × 81 mm
Important information
These control panels must be installed by a qualified worker or seller who is trained and qualified appropriately!
Files to download
Additional parameters
| Category: | Spare parts and components |
|---|---|
| Weight: | 8 kg |
| Brand: | Balboa Water Group |
| Control panel: | Push button |
| Heater output: | 3.0kW - 3.9kW |
| Model: | Balboa GL2001 Mach3 3.0kW + ML900 |
| Napětí: | 230V/ 50Hz |
| Rozměry: | GL2001: 300 x 500 mm |
| Počet tlačítek: | 12 |
| Tlačítka: | Time, Mode/Prog, Warm, Cool, Jets 1, Jets 2, Jets 3, Option, Invert, Fiber, Light, Blower |
| Kód produktu: | SETGL2001 |
Be the first who will post an article to this item!
