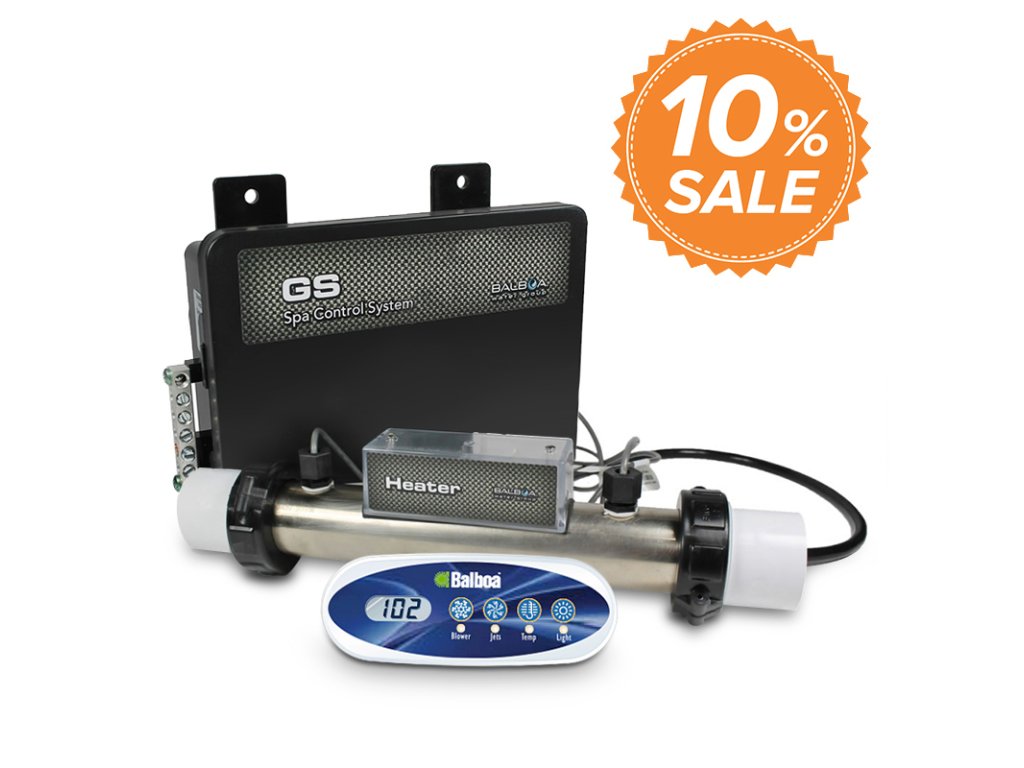

Balboa SET Control Unit GS100 + heater M7 2.0kW + control panel VL200
Balboa Complete control set GS100
Control unit
The serie of control systems Global Series (GS) is designed for reliability, easy installation and operation.
- RoHS suitable / Environment friendly
- European safety approved
- Multi-level diagnostic functions
- Better installation and service
Control systems from the company Balboa quarantee smooth and faultless whirpool operation and it can be assembled to the most whirpools .
Specification
- Pump 1: two-speed massage pump
- Heater: 2.0 kW
- Ozonizer: Ano
- Lighting: 1× 12V
- Voltage/Hz: 230V/50Hz
Dimensions
Lenght: 190mm
Height: 137mm
Depth: 60mm

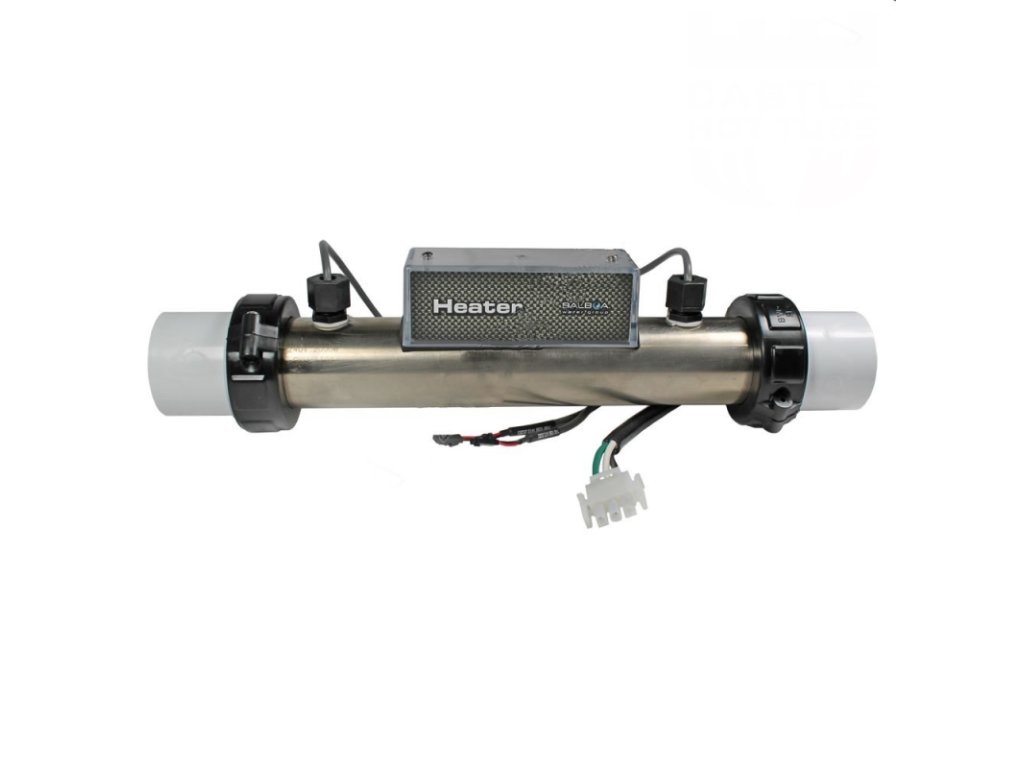

Heater
Use with the control unit GS100
Specification
- Sensor – M7
- Element – Incoloy
- 2.0 kW
Dimensions
Length: 260 mm
Diameter: 50 mm / 1.5 inch
Total lenght incl. flange: 375 mm

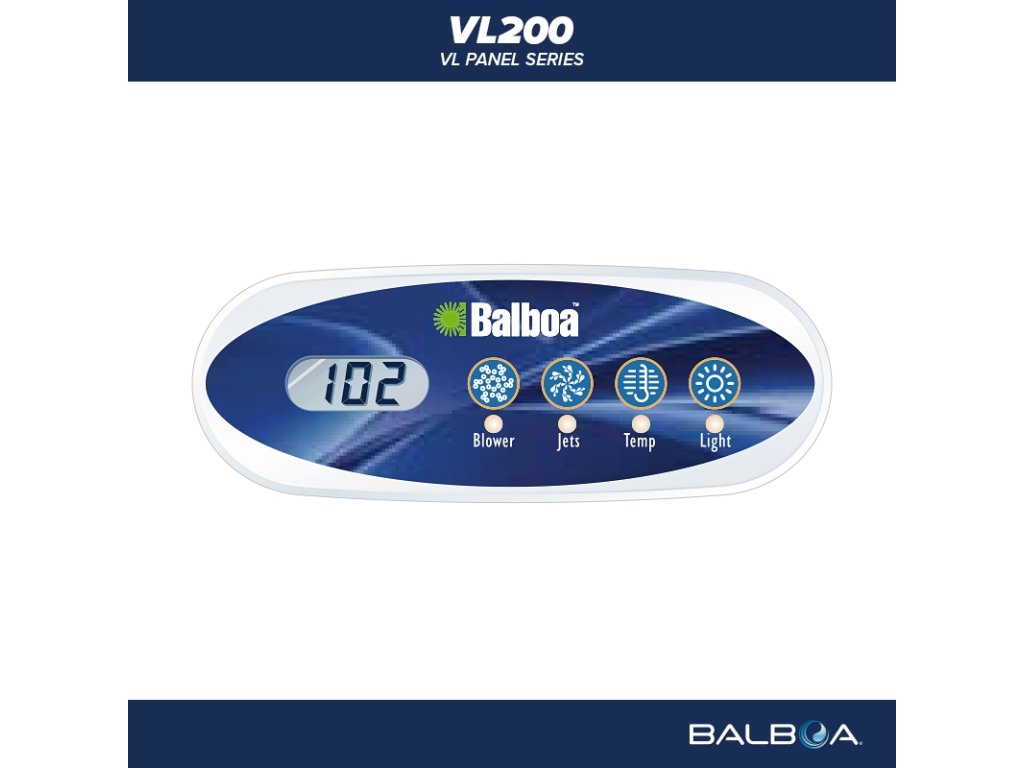

Control panel
The serie VL contains a simple LCD display and easily used buttons.
Specification
- Connection type: RJ45 plug
- Buttons: Blower, Jets, Temp, Light

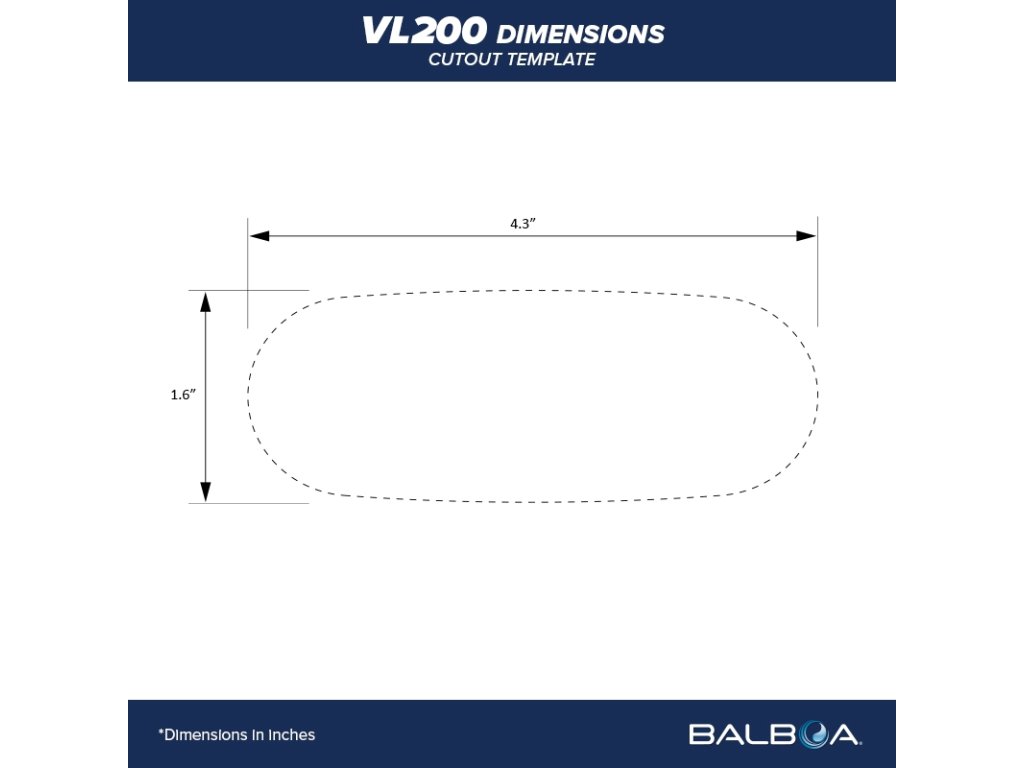

Dimensions
109 × 40 mm
Important information
These control panels must be installed by a qualified professional or electrician!
Files to download
WARNING: The discount cannot be combined with other discounts! The highest possible discount will always be used in the order.
Technical parameters
| Brand: | Balboa Water Group |
|---|---|
| Model: | Balboa GS100 + heater M7 GS100 + VL200 |
| Napětí: | 220-240V/50Hz |
| Rozměry: | GS100: 190 x 137 x 60 mm |
| Počet tlačítek: | 4 |
| Tlačítka: | Blower, Jets, Temp, Light |
| Kód produktu: | SETGS100 |
