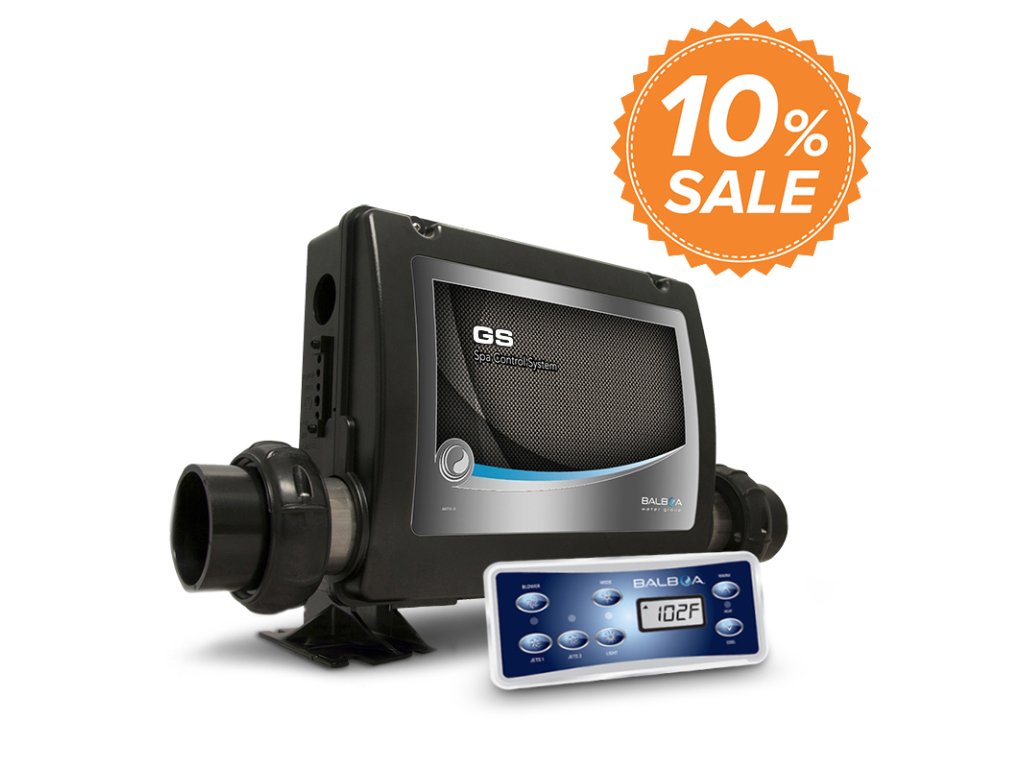

Balboa SET Control Unit GS510SZ 3.0kW + control panel VL701S
-
Balboa Complete control set GS510SZ

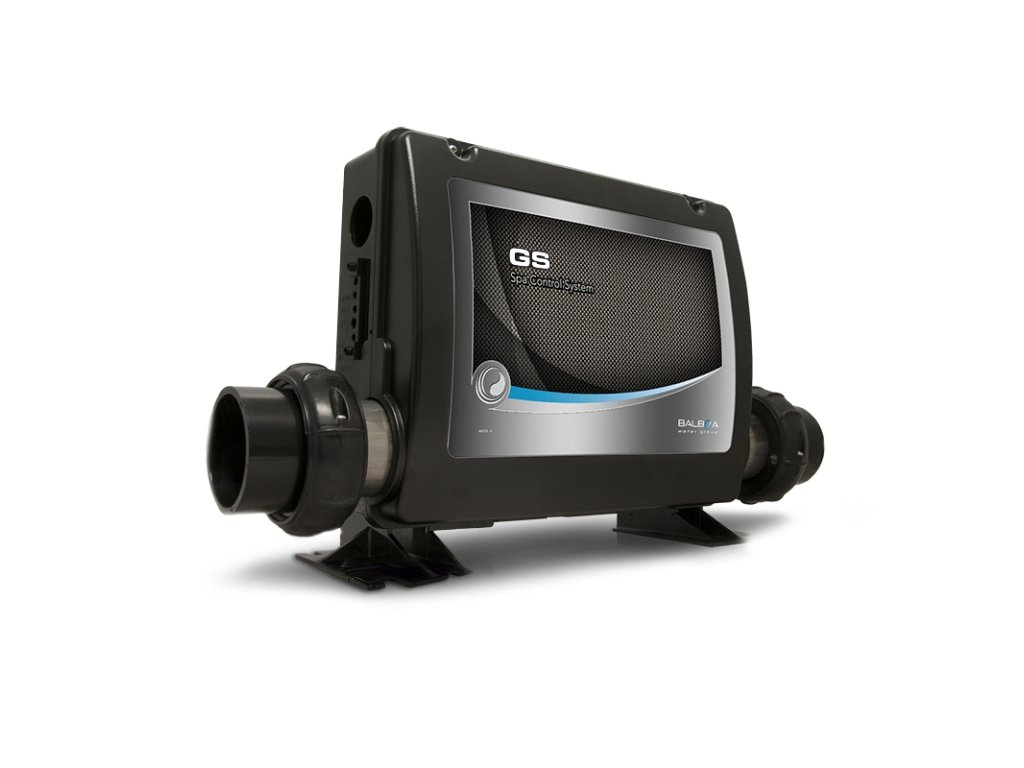

Control unit
The serie of control systems Global Series (GS) is designed to ensure reliability, simple installation and operation.
- RoHS suitable / Environment friendly
- European safety approved
- Multi-level diagnostic functions
- Better installation and service
Control systems of the company Balboa quarantee smooth and faultless whirpool operation and can be assembled to the most whirpools.
Control systems GS, GL and BP are delivered with the latest technology M7, which means there are no longer needed external thermal sensors in the whirpool or pressure and flow switches in order to detect water flow. This technology consists of two sensors M7, one on each end of the heater, which enhances way of water flow and water temperature detection.
Specification
- Pump 1: one-speed or two-speed massage pump + ciculatory pump, if required.
- Pump 2: one-speed massage pump
- Compressor: 1× (optional)
- Heater: 1× 3kW
- Ozonizer: 1×
- Lighting: 12V
- Connection options TV/AV, radio
Dimensions
270 × 500 mm

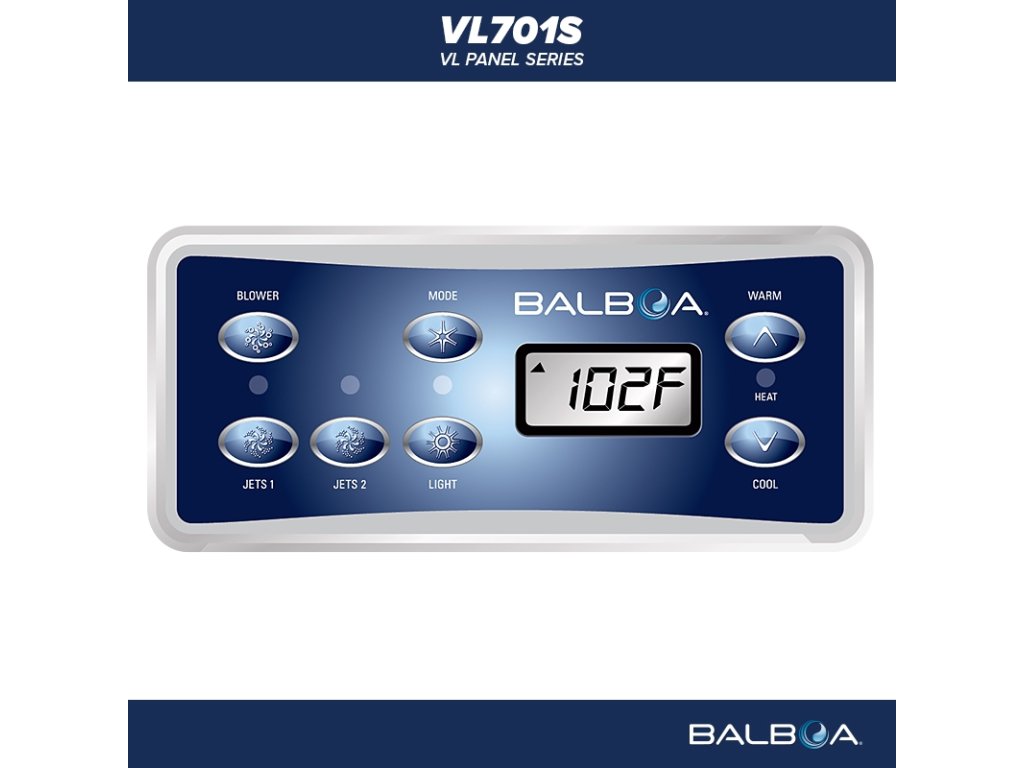

Control panel
The serie VL contains a simple LCD display and easily used buttons.
Specification
- Connection type: RJ45 plug
- Buttons: Blower, Mode, Jets 1, Jets 2, Light, Warm, Cool

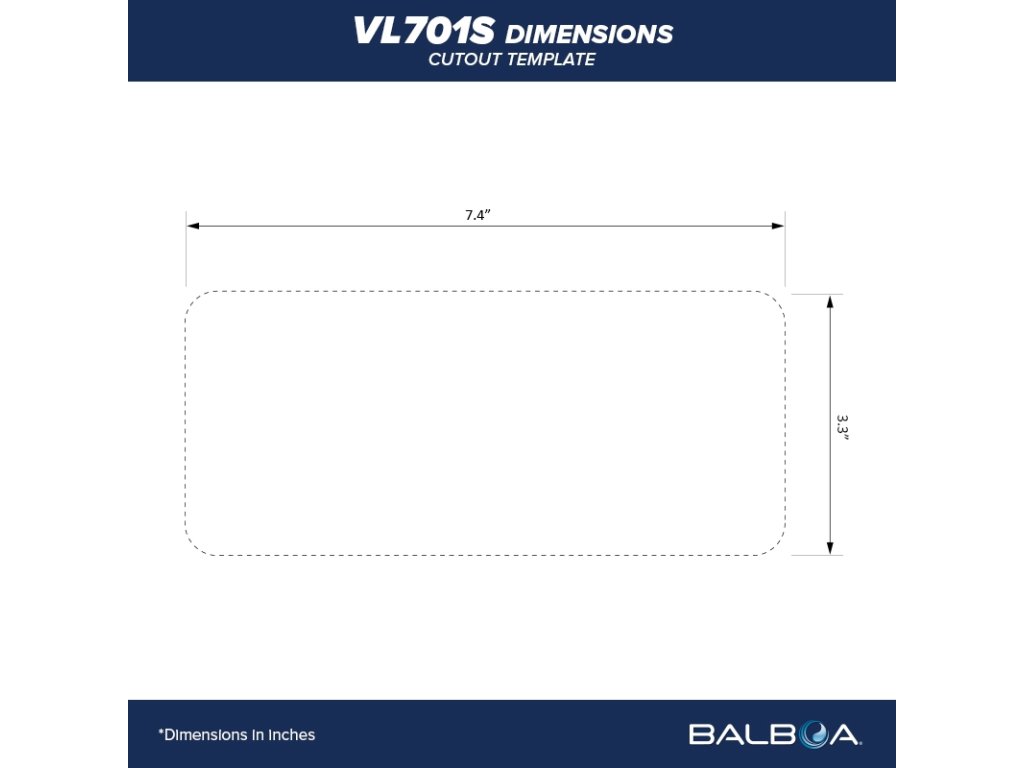

Dimensions
188 × 84 mm
Important information
These control panels must be installed by a qualified professional or electrician!
Files for download
Additional parameters
| Category: | Control sets |
|---|---|
| Weight: | 7 kg |
| Brand: | Balboa Water Group |
| Control panel: | Push button |
| Heater output: | 3.0kW - 3.9kW |
| Model: | Balboa GS510SZ 3.0kW + VL701S |
| Napětí: | 220-240V/50Hz |
| Rozměry: | GS510SZ: 270 x 500 mm |
| Počet tlačítek: | 7 |
| Tlačítka: | Blower, Mode, Jets 1, Jets 2, Light, Warm, Cool |
| Kód produktu: | SETGS510SZ |
