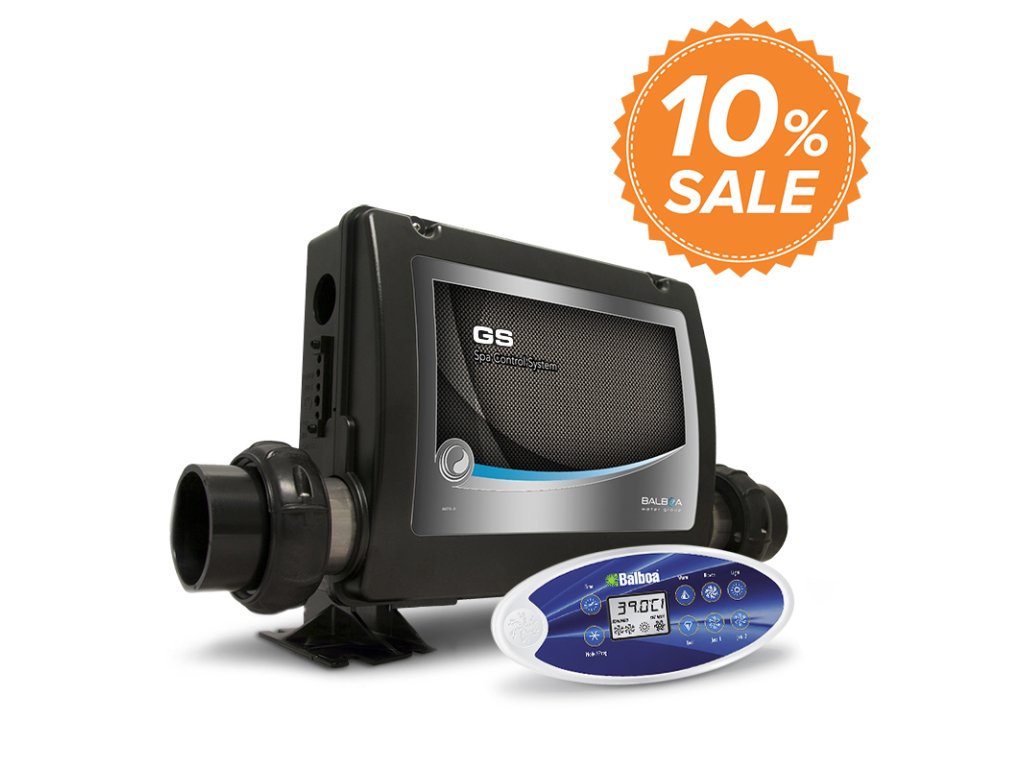

Balboa SET Control unit GS523DZ 3.0kW + control panel VL802D

Balboa Complete control set GS523DZ

• If bought as a set price lowers by 10 % compared to price when purchased single components separately.

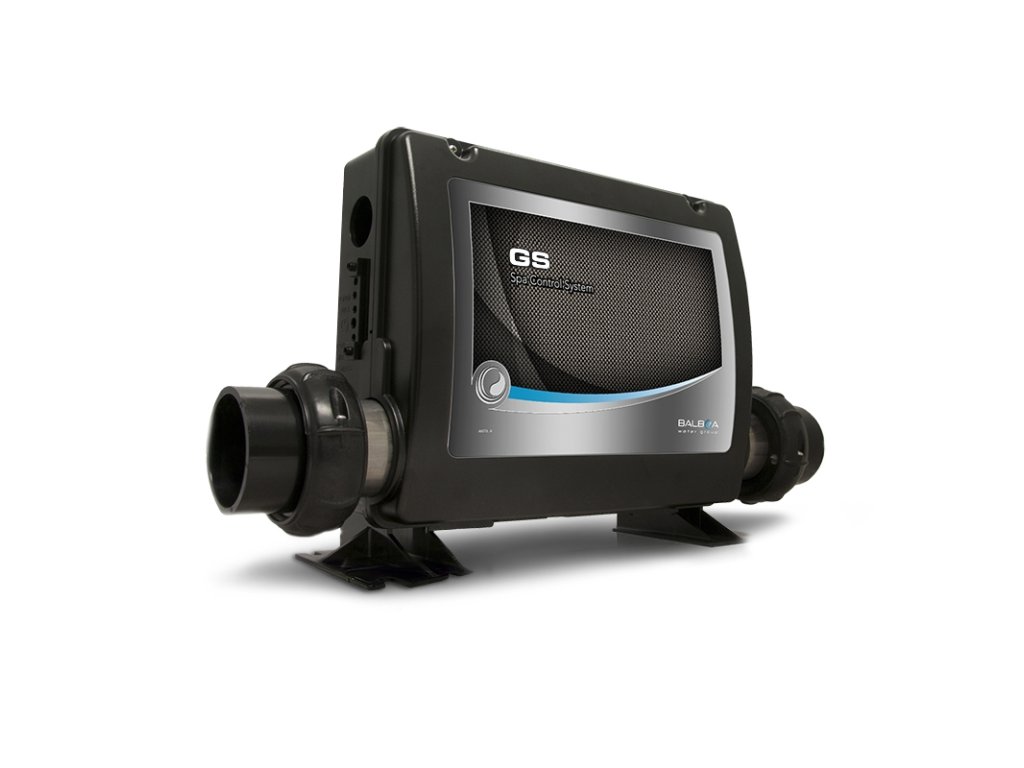

Control unit

GS523DZ

Serie of control systems Global Series (GS) is designed to meet reliability, easy installation and smooth operation.

• RoHS approved / Environment friendly
• European safety approval
• Multi level diagnostic functions
• Better installation and service

Control systems of the company Balboa quarantee smooth and faultless whirpool operation and can be installed to the most whirpools.

Control systems GS, GL and BP are delivered with the latest technology M7, meaning there is no need of external temperature sensor in your spa, or of pressure or flow switches in order to detect water flow. This technology consists of two sensors M7, one on each end of the heater which enhances flow andwater temperature detection in one step.

Specification

• Pump 1: one-speed or two-speed massage pump + circulatory pump if required.
• Pump 2: one-speed massage pump
• Pump 3: one-speed massage pump
• Compressor: 1× (optional)
• Heating: 1× (3kW)
• Ozonizer: 1×
• Lighting: 1× 12V
• Connection options TV/AV, radio

 Dimensions

270 × 500 mm

Control panel

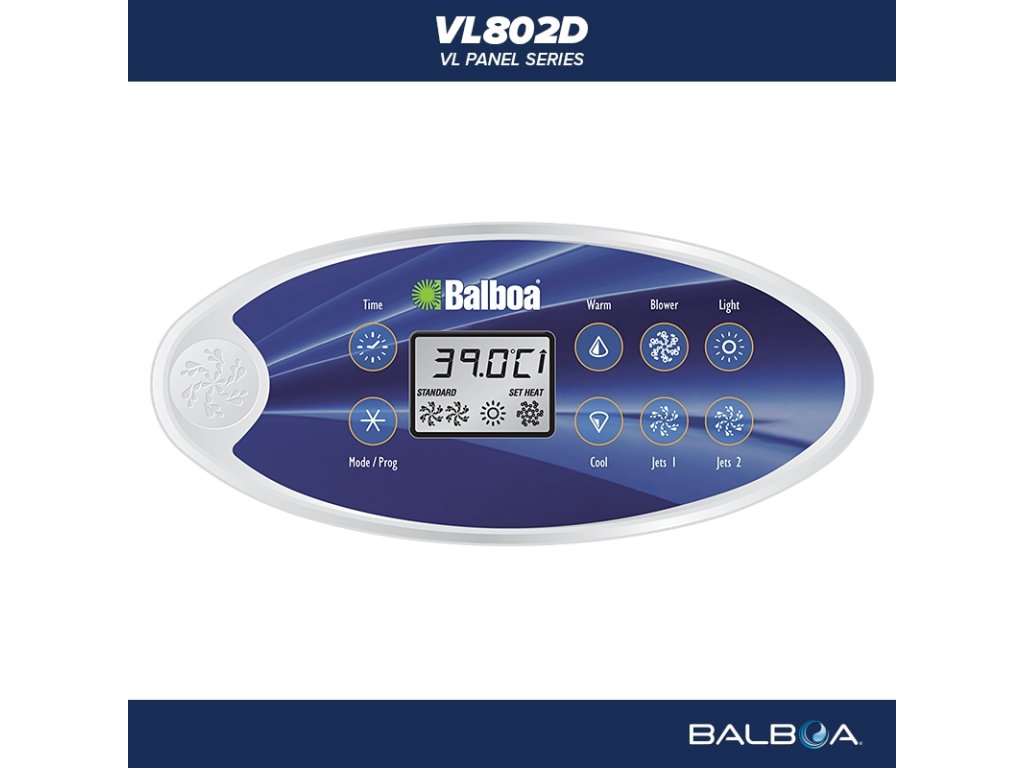

Control panel Balboa VL802D

Serie VL includes a simple LCD display and easily used buttons.

Specification

• Connection type: RJ45 plug
• Buttons: Time, Mode/Prog, Warm, Cool, Blower, Light, Jets 1, Jets 2

Dimensions

262 × 117 mm

Important information

These control panels must be installed by a qualified worker or seller who is trained and qualified appropriately!

Files for download

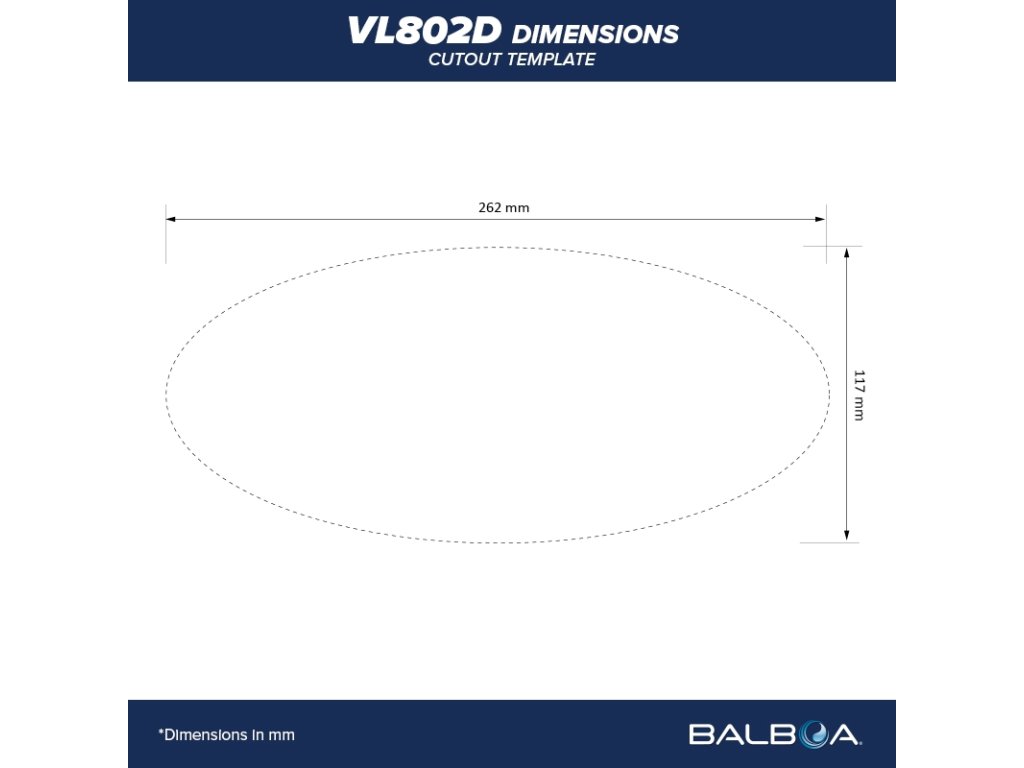

• VL802D – Dimensions (Cutout)
• VL802D – Dimensions (Overlay)
