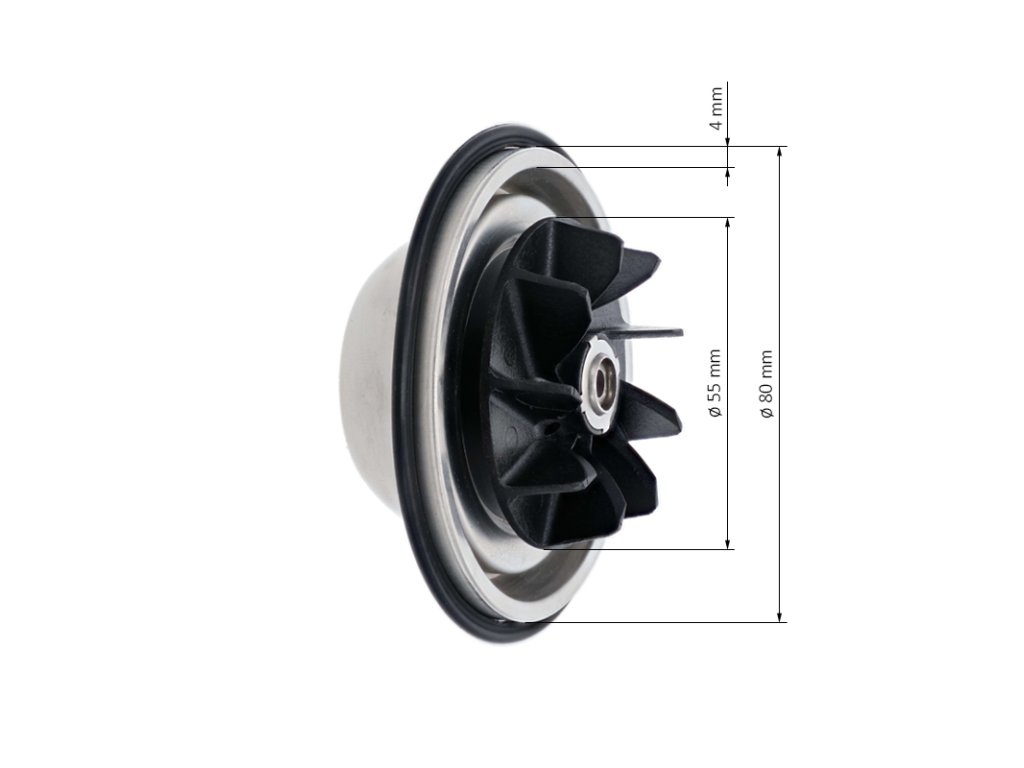

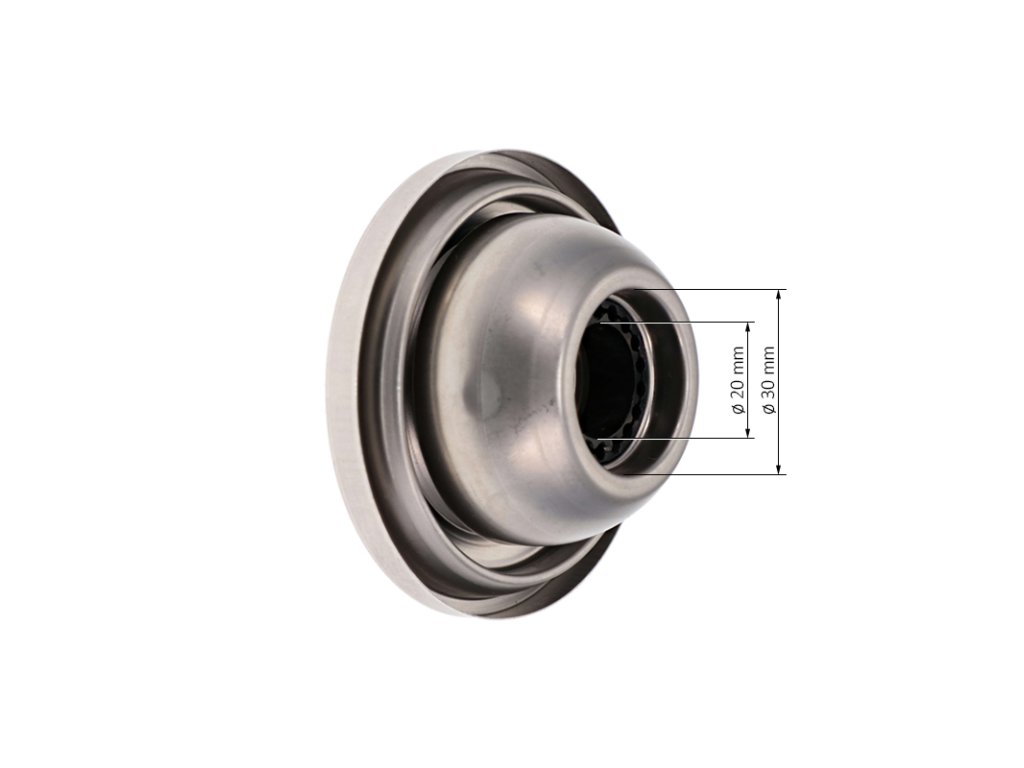

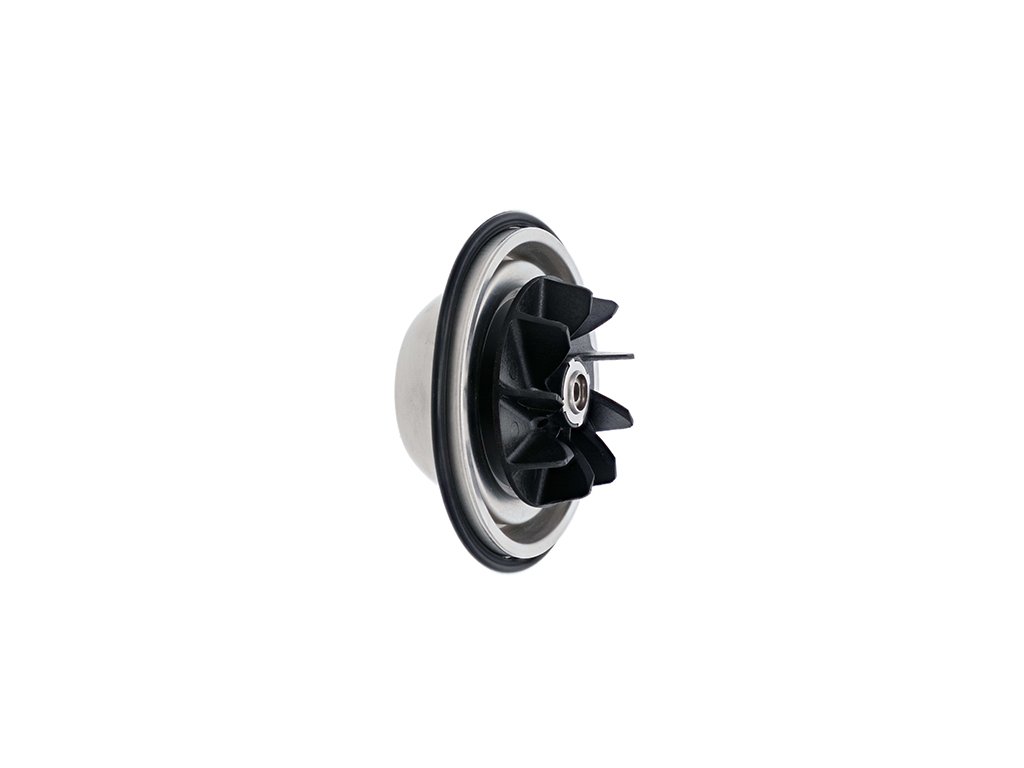

This rotor assembly is a moving part of the Laing E14 circulation pump.

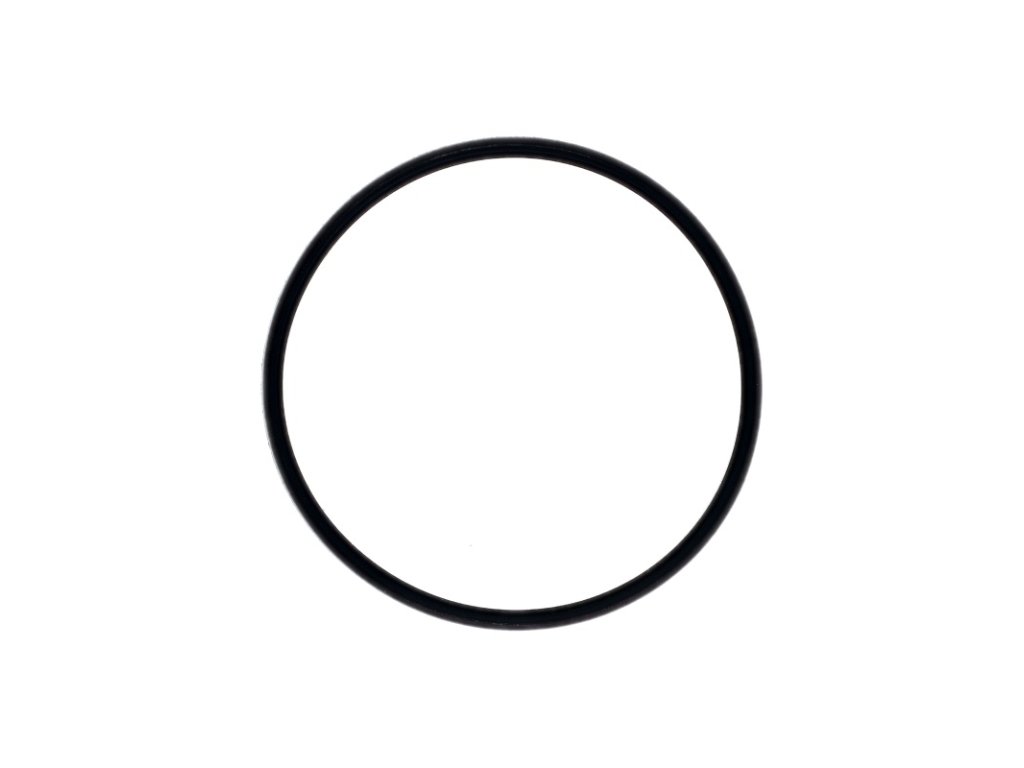

This kit includes the impeller, the magnetic section, the carbon bearing, as well as the o-ring. It is a one piece unit that cannot be dismantled further.
The rotor assembly allows you to repair the pump if it fails due to dry running or carbon bearing failure.
Before any replacement, clean the rounded and magnetic part of the rotor. Also make sure that the ceramic ball of the motor is intact and undamaged. Otherwise, you will have to replace the entire pump.
Additional parameters
| Category: | Laing circulation pumps |
|---|---|
| Weight: | 0.3 kg |
| Brand: | LAING |
| Model: | LAING - rotor R109 - E14 |
| Průměr: | 80 mm |
| Kód produktu: | Kit E14 |
