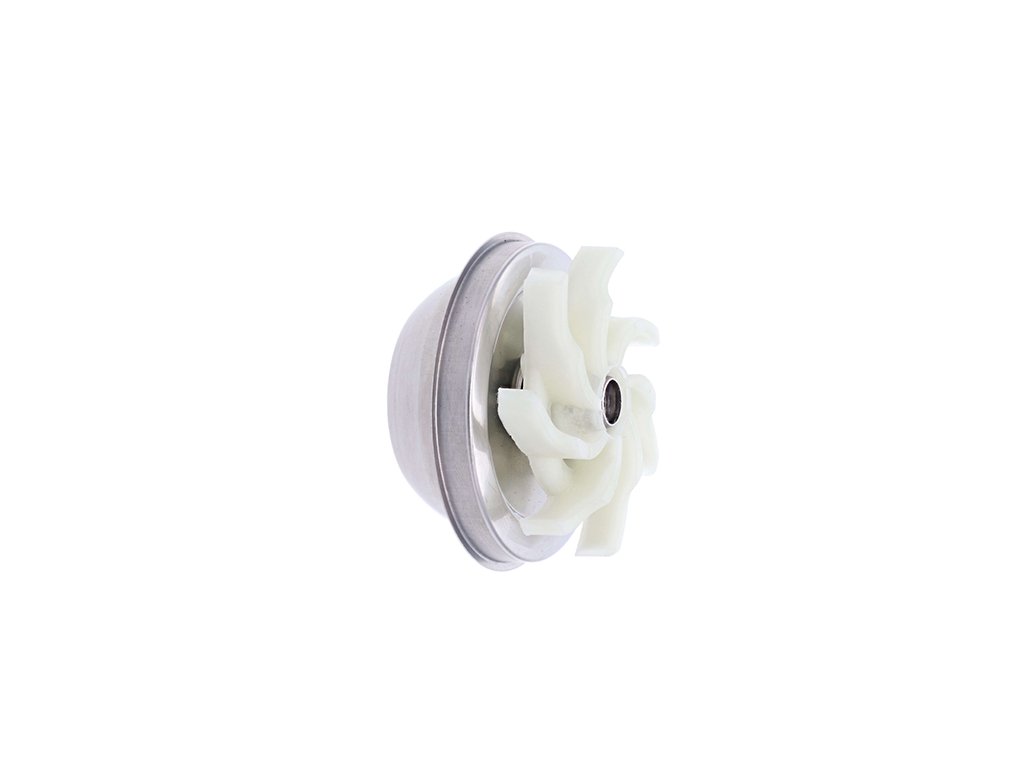

This rotor assembly has a maximum diameter of 68 mm of the E6 pump and many E10 pumps (with 3/4" barb connection, 1" barb connection) from Laing.
This kit includes the impeller, the magnetic section, the carbon bearing, as well as the o-ring. It is a one piece unit that cannot be dismantled further.
The rotor assembly allows you to repair the pump if it fails due to dry running or carbon bearing failure.
Before any replacement, clean the rounded and magnetic part of the rotor. Also make sure that the ceramic ball of the motor is intact and undamaged. Otherwise, you will have to replace the entire pump.
The rotor is compatible with the following types of E10:
Pump type
E10-NSHN2W – 20
E10-NSHN1W – 19
E10-NSHNNN2W – 20
E10-NSTNDNN1W – 03
Additional parameters
| Category: | Laing circulation pumps |
|---|---|
| Weight: | 0.2 kg |
| Brand: | LAING |
| Model: | LAING - rotor R112 - E10 |
| Průměr: | 68 mm |
| Kód produktu: | Kit E10 |
