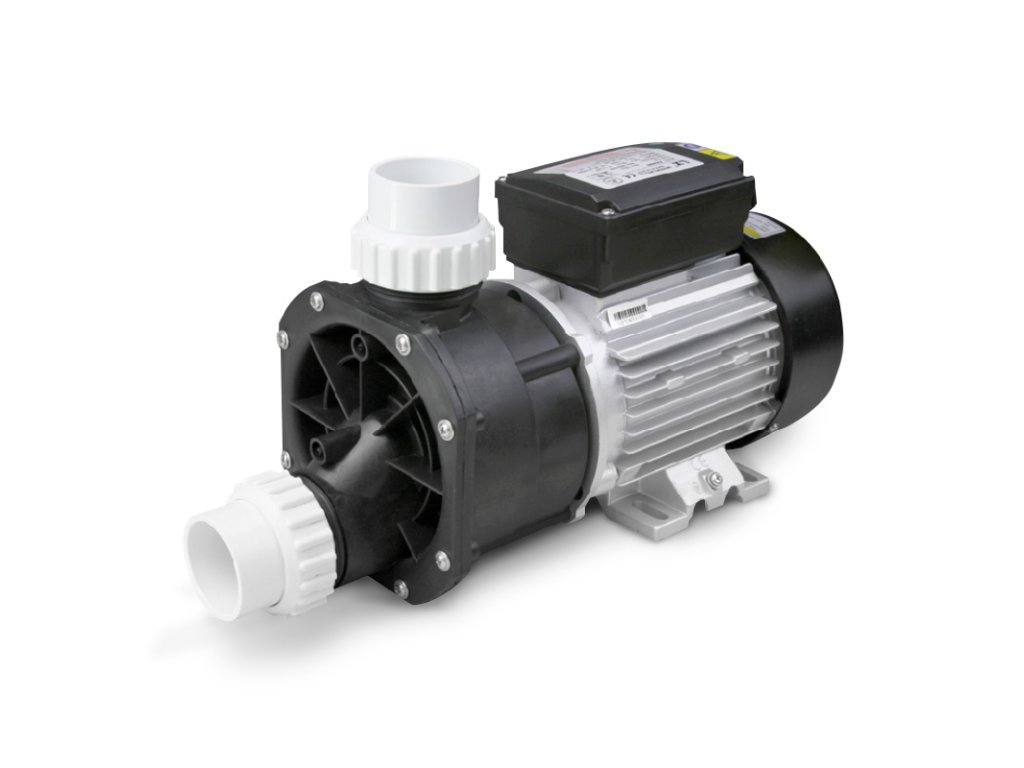

LX circulatory pump for whirlpools EA350, 1 HP

The LX circulation pump EA350 has a robust aluminum body, quality bearings and sealed parts for watertightness. It is very quiet even during continuous operation.

• Designed for optimal performance and flow
• Suction and return diameter 1 '' 1/2 (48 mm) for increased performance and reduced noise
• Engine cooling standard IPX5 for progressive temperature rise
• Thermal overheating detector to maintain and extend engine life
• Equipped with condenser (allows starting / lowering of pumps)
• Material adapted for whirlpools and swimming pools

Dimensions:

Length: 380 mm
Width: 160 mm
Height: 205 mm

Specifications:

Power: 1.0 HP (0.75 kW)
Current: 3.2A
Voltage: 230V / 50Hz
Maximum flow: 320 liters / min

The pump is supplied with flanges and o-rings for 1.5 "pipes.

Electrical connection:

Supplied with AMP PLUG cable.
