LX circulatory pump for whirlpools EA390, 1.2 HP

Code: 01.05.01.0110

Availability	In stock
Delivery offer
Code:	01.05.01.0110

€266 €220 excl. VAT €266 / 1 pcs

LX circulatory pump for whirlpools EA390, 1.2 HP

Description

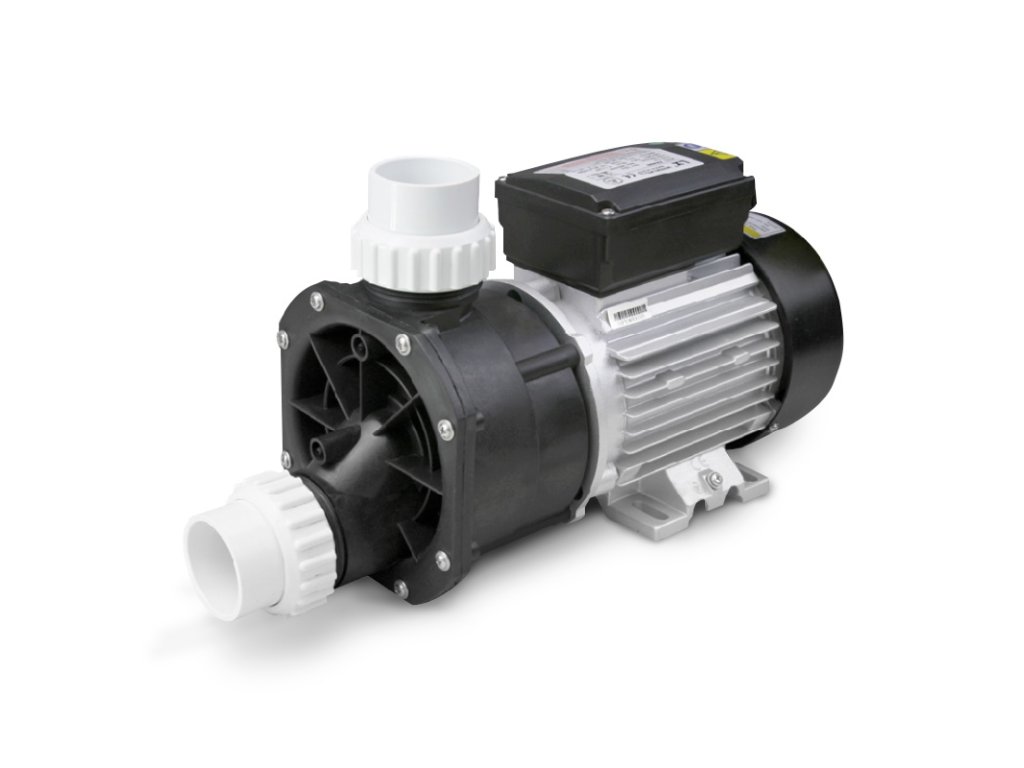

The LX circulation pump EA390 has a robust aluminum body, quality bearings and sealed parts for watertightness. It is very quiet even during continuous operation.

Designed for optimal performance and flow
Suction and return diameter 1 '' 1/2 (48 mm) for increased performance and reduced noise
Engine cooling standard IPX5 for progressive temperature rise
Thermal overheating detector to maintain and extend engine life
Equipped with condenser (allows starting / lowering of pumps)
Material adapted for whirlpools and swimming pools

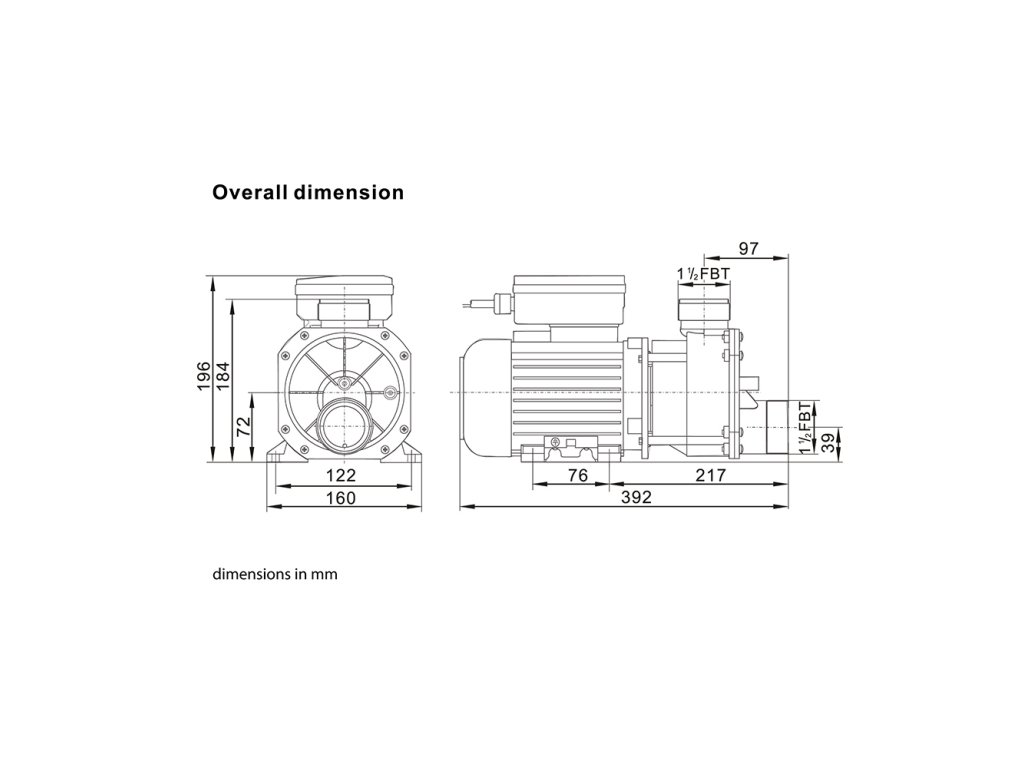

Dimensions:

Length: 380 mm
Width: 160 mm
Height: 205 mm

Specifications:

Power: 1.2 HP (0.9 kW)
Current: 3.2A
Voltage: 230V / 50Hz
Maximum flow: 335 liters / min

The pump is supplied with flanges and o-rings for 1.5 "pipes.

Replaced by EA450.

Electrical connection:

Supplied with AMP PLUG cable.

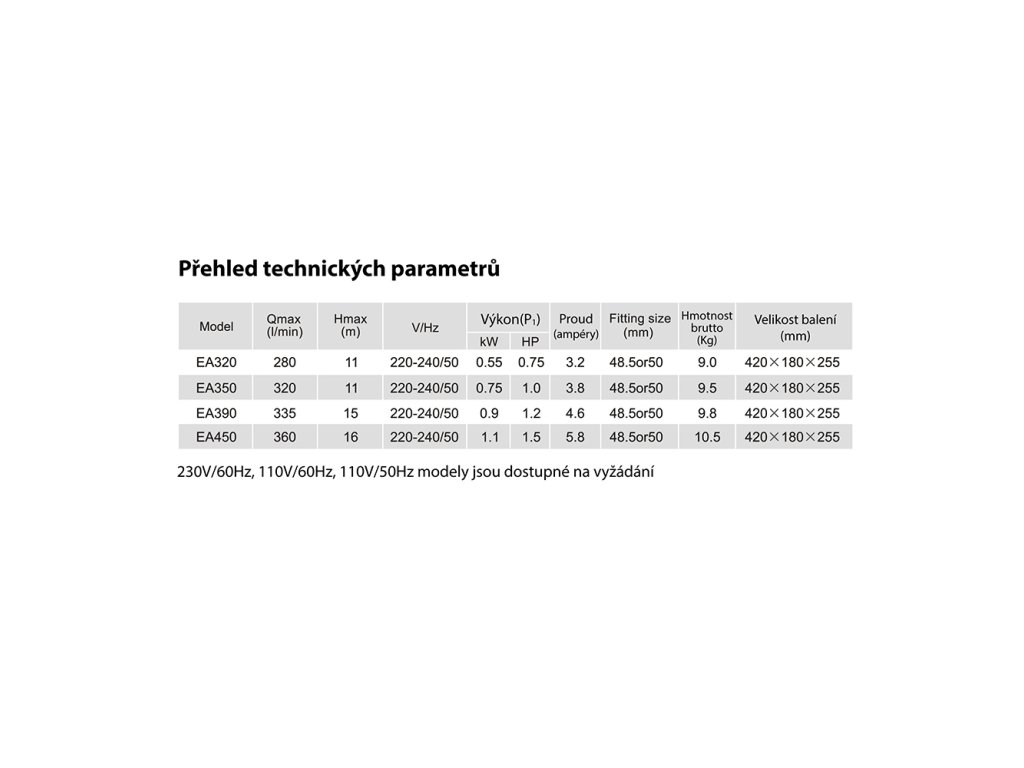

Technical parameters

Category:	Circulation pumps LX
Brand:	LX
Type of pump:	Circulation
Output:	0,5kW - 0,99kW
Hose inlet:	48 - 59 mm
Hose outlet:	48 - 59 mm
Model:	LX EA390
Napětí:	220-240V/50Hz
Izolační třída:	F
Krytí:	IPX5
Maximální průtok:	335 l/min
Maximální výtlačná výška:	15
