LX circulatory pump for whirpools WTC 0.2kW
Code: CCLXWTCRelated products
Product detailed description
Information
- Output / Input -Screw of 60 mm.
- Flange – inner diameter for sealing 48 mm.
- One of the most advanced hydromassage pumps on the market and it is recommended for spas, tubs and whirpools.
- Engine cooled by air is very quiet even during its ceaseless operation.
- Maximum flow rate: 240 litres/minute

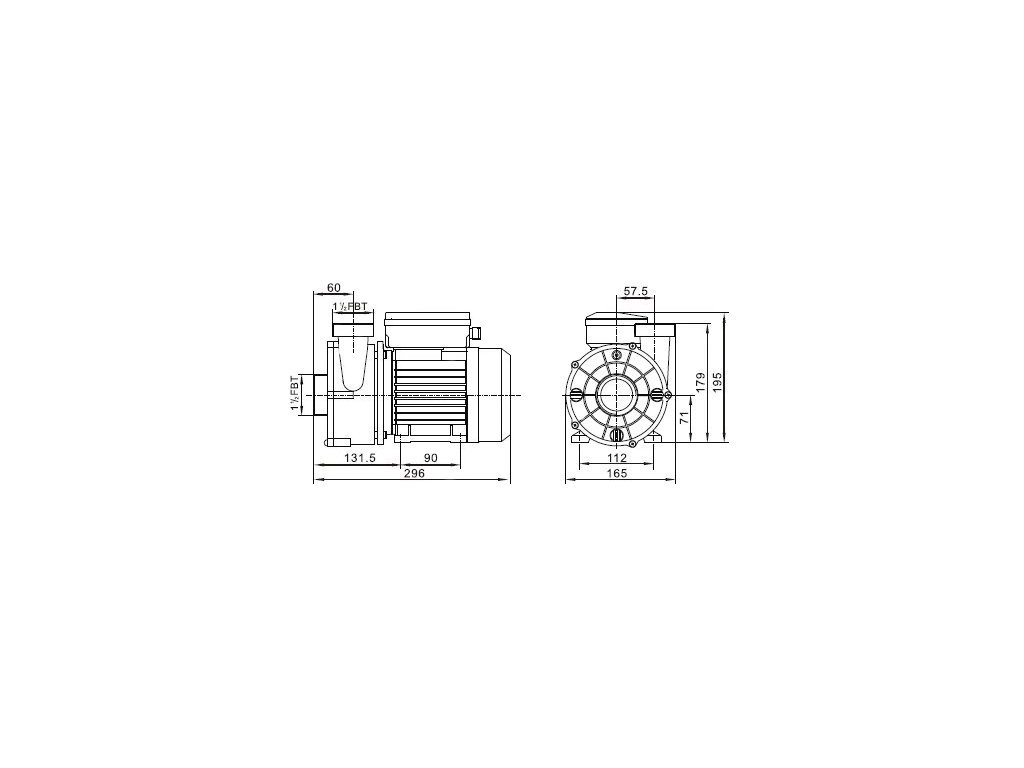

Dimensions
- Length: 296 mm
- Width: 165 mm
- Height: 195 mm
Part numbers
- LX Whirlpool: WTC50
- Sundance Spas: 6500-907 and 6500-913 (since 2011)
- Volition: M05CTW
- Wellis: ACM0846
- Jazzi: JAPU5
Electrical connection
Delivered with a cabel AMP PLUG
Compatible with
- Wellis hot tubs
Additional parameters
| Category: | LX circulation pumps |
|---|---|
| Weight: | 5.4 kg |
| Brand: | LX |
| Type of pump: | Circulation |
| Output: | Less than 0.5kW |
| Hose inlet: | 48 - 59 mm |
| Hose outlet: | 48 - 59 mm |
| Model: | LX WTC |
| Napětí: | 230V/50Hz |
| Izolační třída: | F |
| Krytí: | IPX5 |
| Maximální průtok: | 240 l/min |
| Maximální výtlačná výška: | 3,8 m |
| Příkon: | 0.25 kW / 0,35 HP |
