Oceanic Steam generator – Steam generator for saunas 13,5kW – OC135B

Information

• Model: OC-135B
• Oceanic introduces highly intelligent generator of the top serie OC-B.
• All models of this top serie are equipped with automatic mode of scale removal.
• Top quality steam generator OC-B is equipped with an intelligent difital regulator for control of automated steaming.
• System allows time-setting in intervals between 15 and 240 min, or ceaseless mode – non-stop operation without any timing.
• Temperature setting of the steamer is displayed in the following figures: 30 to 60 degrees Celsius and Fahrenheit, or it is possible setting for home or public operation.
• Generator is also equipped with sequence system of heating which allows even extensive steaming.
• For advanced setting it is possible to use a digital signal of control mode with LED diagnostic.
• Other features are: overheat protection, and protection against dry water boiling in a vaporizer.
• Of course, there is included pressure control of 1.2BAR value with safety valve.
• System is equipped with the new technology of energy saving – the button ECO.
• This button is placed inside the cabin and if needed, it is ready for effective, economical and immediate steam temperature cut-down in a cabin.
• In order to ensure safety and long lifetime, the top line of generators OC,,B,, is equipped with intelligent system of heating spirals, so the highest positioned spiral can be heated as the last one if necessary.
• The highest spirals are the most used ones.
• The system of OC ,,B,, serie is also equipped with automatic decalcification program after each system turn-off and valve release.
• These models of the top serie offer automatic cleaning mode which operates on a basis of quick steaming, other practical features are low energetical operation adn output selection from 3kW to 18kW.
• 24-month-warranty.
• This model is approved and aligned with European norms and standards with CE quality certificate and suitable for commercial operation.
• Package contains: a steam jet, a control panel with a cable, an economic buton ECO, a safety valve, a heating sensor and automatic system of decalcification.

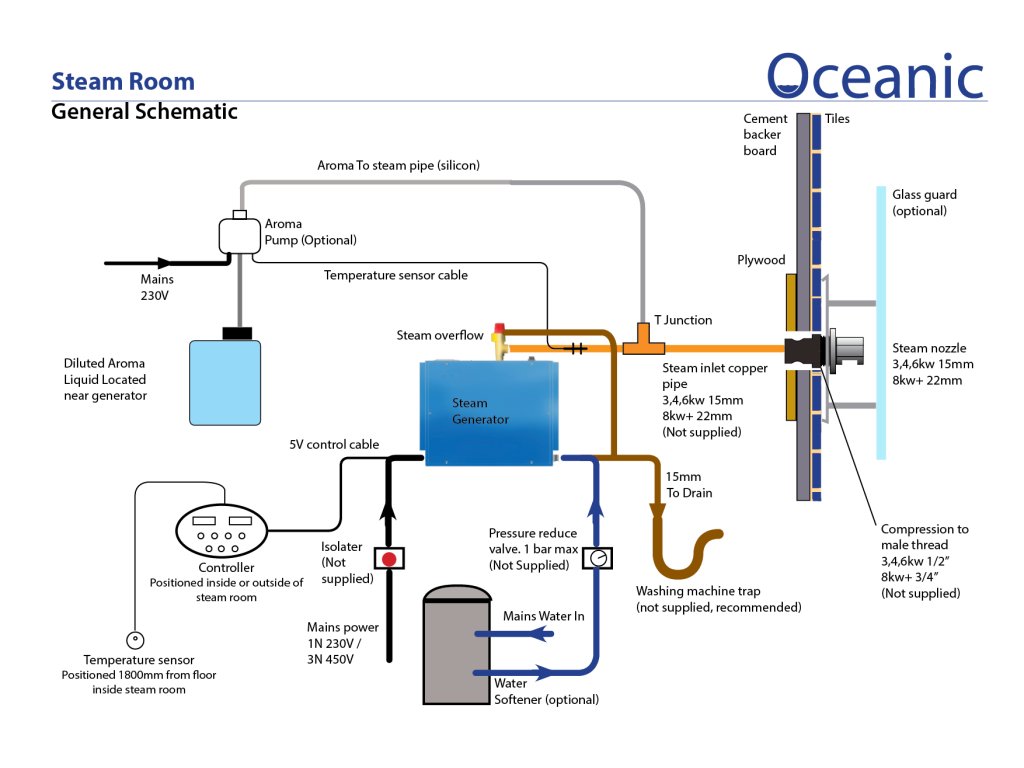

 Guide to building a steam room – PDF

Specification

• Voltage: 230/400 V
• Input: 13,5 kW
• Phase N~: 1/3
• Current A: 56/19,5
• Pressure protection: 1.2 BAR
• Room capacity: 11 – 16 m3
• Dimensions (l, w, h): 580×260×500 mm

Important

• Read the manual before installation and product operation.
• This device must be conneted to an insulating pole.
• This equiopment must be installed by a competent person.
• Disconnect from power source, before manipulation with electrical contacts.
• Confirm the correct voltage for your steam generator 1 or 3 phases.

Safety precautions for steam spa

• Elder people, pregnant women or people with heart conditions, high blood pressure, diabetes or any other health conditions shall consult with an expert before steam spa use.
• In a steam room there is a smoking ban.
• Avoid entering the steam room after work-out.
• Do not use the steam room if under alcohol influence.
• Exit the steam room immediately if you feel drowsy, sick or any other discomfort.
• Ensure the steam rooom to be properly ventilated.
• It is not recommended that this product is used by people younger 16 years.
• For commercial use the operator should place these safety precautions visibly to inform users.

SPA Components has completed full training of Oceanic steam generators and we have all spare parts available for service. Therefore, we provide a complete post-warranty service on site at the customer throughout the country. You can also send the steam generators to our branch or we can organize the transport ourself.
