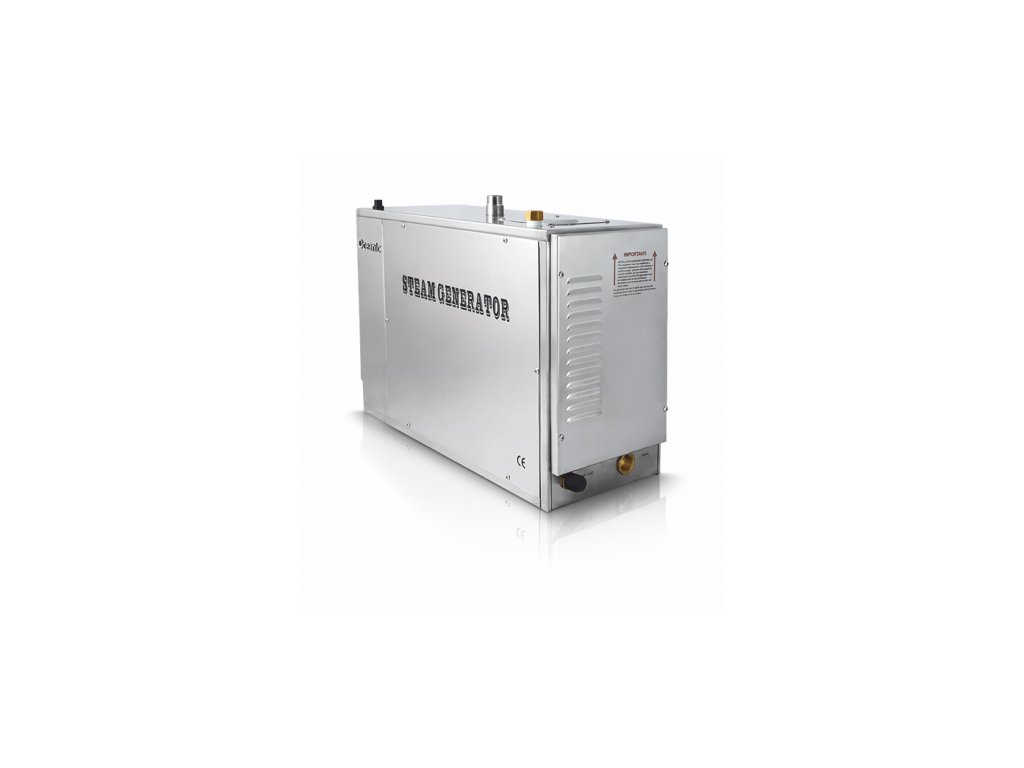

Oceanic Steam generator – Steam generator for saunas 6kW – OC60C

Information

• Model: OC-60C
• The top serie of a super powerful steam generator for extra demanding ceaseless operation.
• These hardy models in a luxurious stainless case have unique steaming abilities unique nonstick technology of heating spirals.
• Thanks to connection of the latest technology and highly intelligent control system there is quaranteed smooth and long-run operation of these models.
• Each model of this serie is equipped with control electronics with autonomous control system and independent diagnosis of continuous operation.
• The most advanced system of automatic control allows ceseless operation of the generator in optimized operation according to set-up modes and temperature.
• Each model of this luxurious serie is equipped with three intelligent independent heating spirals which can be heated separately if needed and therefore effeciently work with output and speed of heating.
• Thanks to this latest technology of operation a heating effect is optimized in the best possible way and efficiency of energy saving. – Certainly, you can expect ceaseless deliming cycle which automatically decalcify inside technology by just pressing the button.
• Suitable for 16 Hour A Day Operation
• Fully Automatic Operation
• Day / Time Programmable
• Automatic Descaling
• Steam on Demand
• LCD Display With Detailed Diagnostics
• Button for Fan and Light Powered Off Main Circuit Board
• Large Bore Drain Valve with Easy Access Cap for large limescale deposits
• 24 Months Warranty

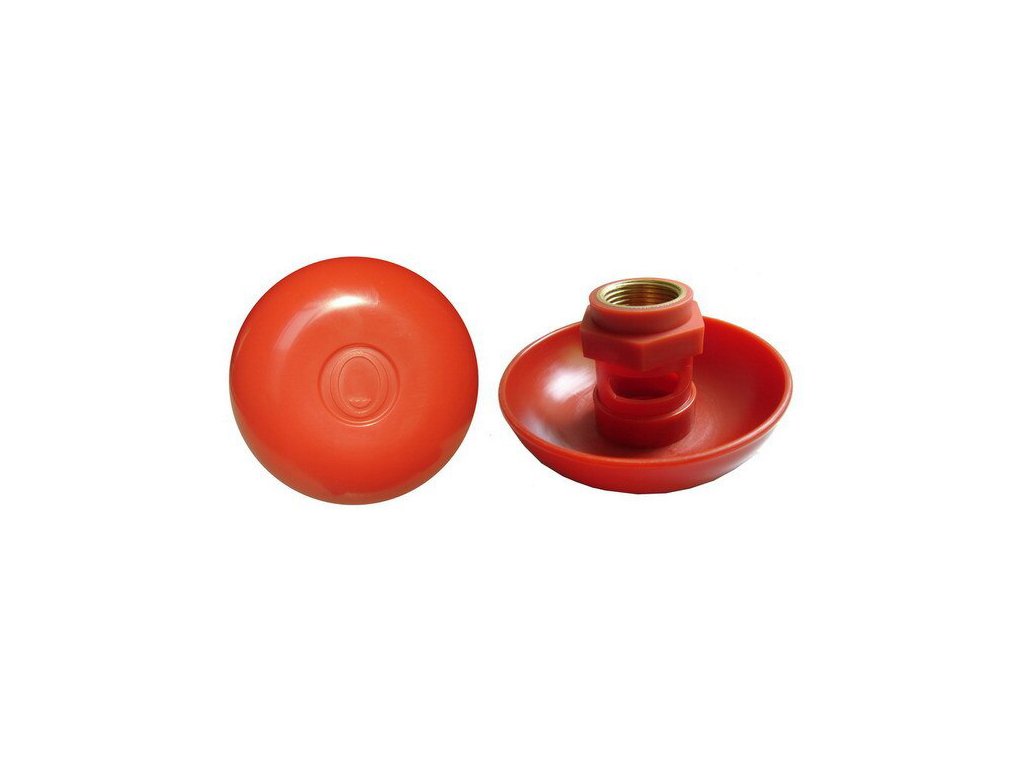

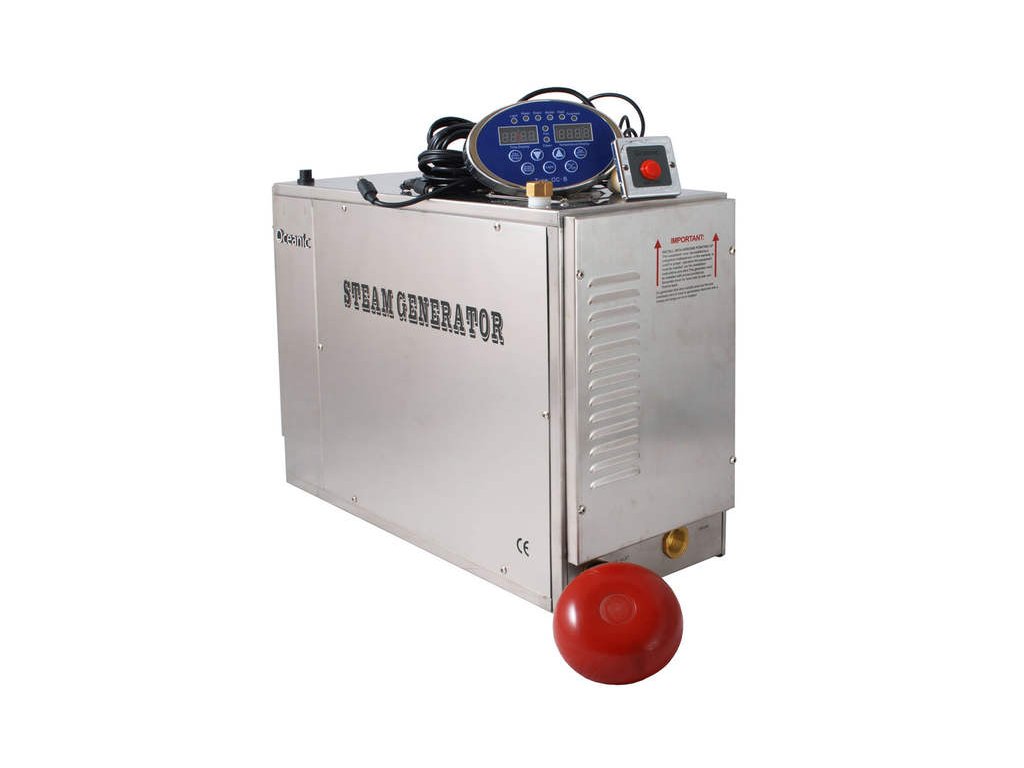

Package contains: a steam jet, a control panel with a cable, an economic buton ECO, a safety valve, a heating sensor and automatic system of decalcification.

Fully Automatic Operation – Once you have set the day and time the generator can be setup to heat at 2 different times per day or just on in the morning and off at night. Once this has been setup the generator will automatically turn on and off at these times each day. It is also possible to just have the generator operating on a standard countdown timer or continous operation.

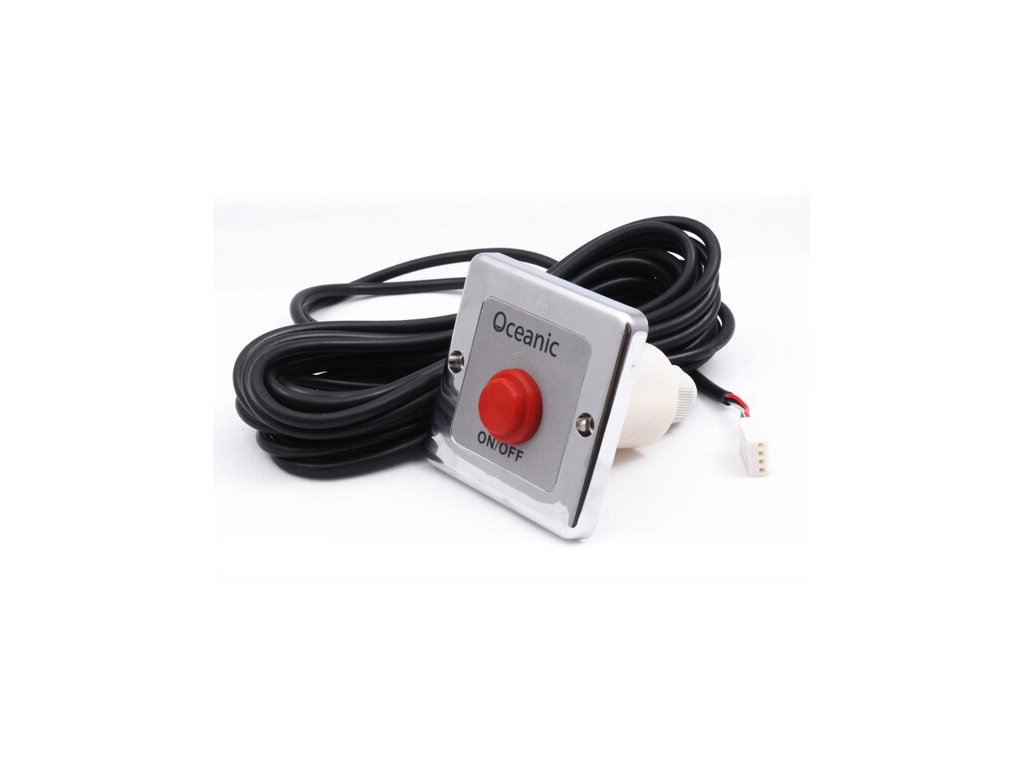

Steam on Demand – For commercial operaters where the steam room is left empty for many hours through the day. Install a button outside of the steam room that users press when they want to use the room, each push of the button will give 30 minutes of steam. The generator holds the water in the tank at 85 ° C so that when the button is pushed the generator will steam instantly. Note – the user will have to wait for the room to heat up but in most cases this is not a problem, the use of bench heating is a solution to this.

Automatic descaling – From the keypad you can choose which day and time you want the descaling cycle to take place (for example sunday 00:00 – 7:00). The generator is supplied with a pump which pumps from a large container of premixed citric acid on the plant room floor. (We sell 25L or 120L drums) The generator will heat the acid so the reaction speeds up, it will drain down at the end of the cycle, you can choose how long you want the descale cycle to last but we advise no shorter than 4 hours. The generator will descale itself on the same day and time every week unless this option is turned off.

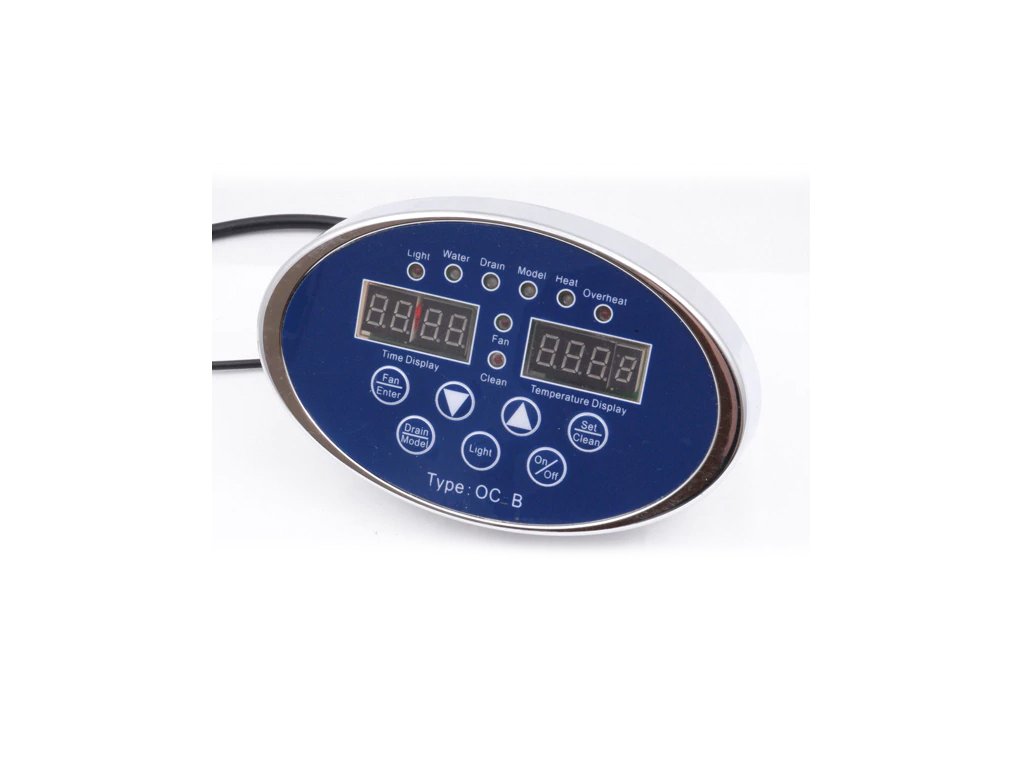

LCD Display – Our new back lit LCD display with clear symbols to explain if the generator is filling, heating, draining, cleaning itself or which heating mode it is in.

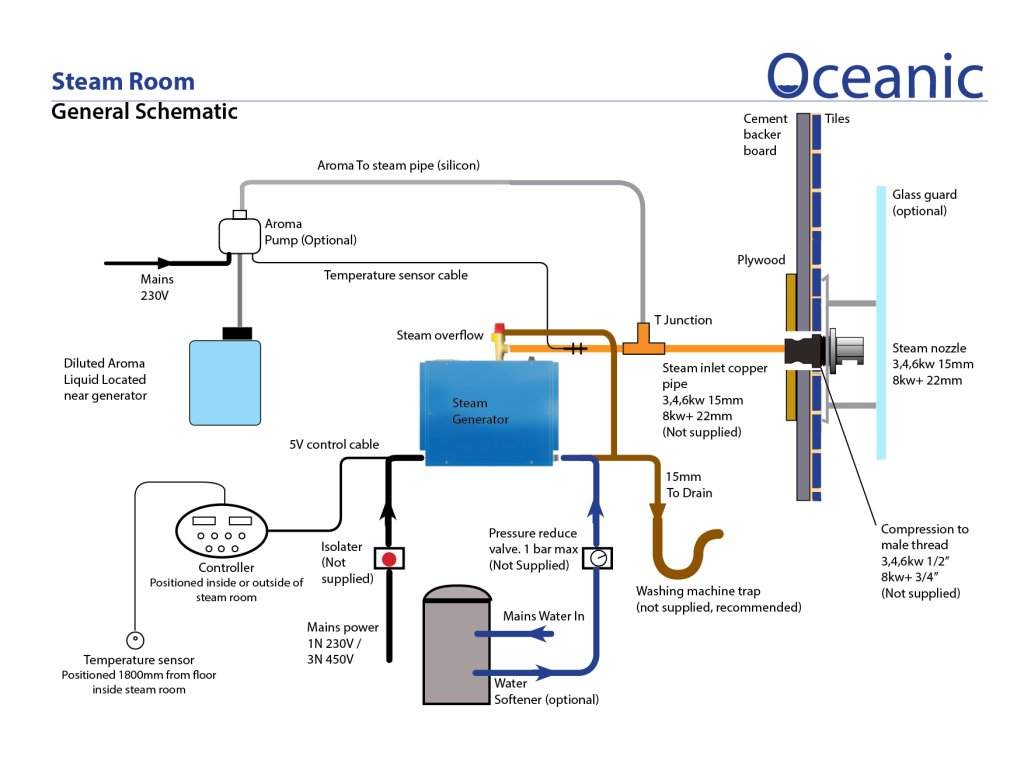

 Guide to building a steam room – PDF

Specification

• Voltage: 230/400 V
• Input: 6 kW
• Phase N~: 1/3
• Room capacity: 2 – 4 m3
• Dimensions (l, w, h): 530×180×330 mm
• Package contains: A steam jet, a control panel with a cabel, a safety valve, a thermal sensor.

Important

• Read the manual before installation and product usage.
• This device must be connected to an insulating pole.
• This equipment must be installed by a competent person.
• Disconnect from power source before manipulation with electrical contacts.
• Confirm the correct voltage for your steam generator 1 or 3 phases.

Safety precautions for a steam spa

• Elder people, pregnant women or people with heart conditions, high blood pressure, diabetes or any other health conditions shall consult with an expert before steam spa use.
• In a steam room there is a smoking ban.
• Avoid entering the steam room after work-out.
• Do not use the steam room if under alcohol influence.
• Exit the steam room immediately if you feel drowsy, sick or any other discomfort.
• Ensure the steam room to be properly ventilated.
• It is not recommended that this product is used by people younger 16 years.
• If for commercial use the operator should place these safety precautions visibly to inform users.

SPA Components has completed full training of Oceanic steam generators and we have all spare parts available for service. Therefore, we provide a complete post-warranty service on site at the customer throughout the country. You can also send the steam generators to our branch or we can organize the transport ourself.
